ZD420 Direct Thermal Desktop Printer Support

Models

ZD420D

The ZD420 printers (Standard and Healthcare) are part of the ZD400 Series Printer family

Zebra is no longer offering this product for sale. The product resources are provided below for your use and convenience. Please note that Customer Support will not be available after the Service and Support Discontinuation date. If you require additional support, please contact a Zebra Authorized Service Provider.

APAC

Product Discontinuation Date: December 31, 2021
Service and Support Discontinuation Date: February 28, 2025

EMEA

Product Discontinuation Date: September 30, 2021
Service and Support Discontinuation Date: November 29, 2024

North America

Product Discontinuation Date: September 30, 2021
Service and Support Discontinuation Date: December 31, 2024

Latin America

Product Discontinuation Date: January 31, 2022
Service and Support Discontinuation Date: April 30, 2025

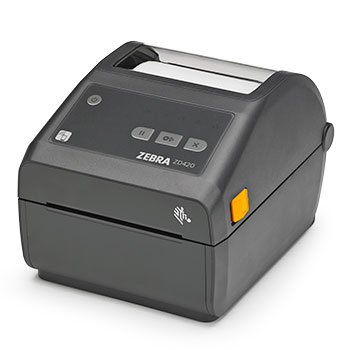

ZD420d Desktop Printer

ZD420D

The Setup guidelines below will take you to English documentation. You can access the localized User Guides in the DOCUMENTATION tab.

IMPORTANT! Do not connect your printer to a computer yet!

  • If you connected your printer to a computer via USB before driver installation, the printer might appear as an unknown (unspecified) device in “Devices and Printers.”
  • If necessary, follow these recovery steps before proceeding to Step 1.

1. Download and install the recommended Windows Printer Driver v10.

2. Download and install the Zebra Setup Utilities (ZSU) printer configuration utility.

3. Connect the printer to a USB port on your computer and power up it .

4. Load media (media usually means labels, but it also includes tag stock, receipt paper, and other things that can be printed on).

  • You can watch the video in the VIDEOS tab.
  • The media settings must match the actual media that you are using.
    How to identify media type.

5. Run a SmartCal media calibration and print a configuration report. Videos are also available in the VIDEOS tab.

6. Manually calibrate ribbon and media sensors.

  • When changing the size or type of media.
  • If printing issues are observed, such as skipped labels, vertical image/label drift, or media out errors.
  • You can watch the video in the VIDEOS tab.

7. The printer settings must match the actual supplies that you are using for your print job and the options on your printer. Adjust the printer settings as necessary using Zebra Setup Utilities software or Windows Printer Driver v8

*Additional User Manuals relating to hardware and connectivity options are available in English in the DOCUMENTATION tab.
