Zebra frame grabbers play a vital role in PCB assembly inspection by enabling high-resolution image capture at high speeds for real-time defect detection in Automated Optical Inspection (AOI) machines. By offloading intensive image processing from the host computer's CPU, they allow large, high-resolution images to be processed efficiently. In AOI applications, where high resolution is critical, Zebra frame grabbers deliver the processing bandwidth needed for effective defect detection and quality assurance, making them indispensable in modern electronics manufacturing.

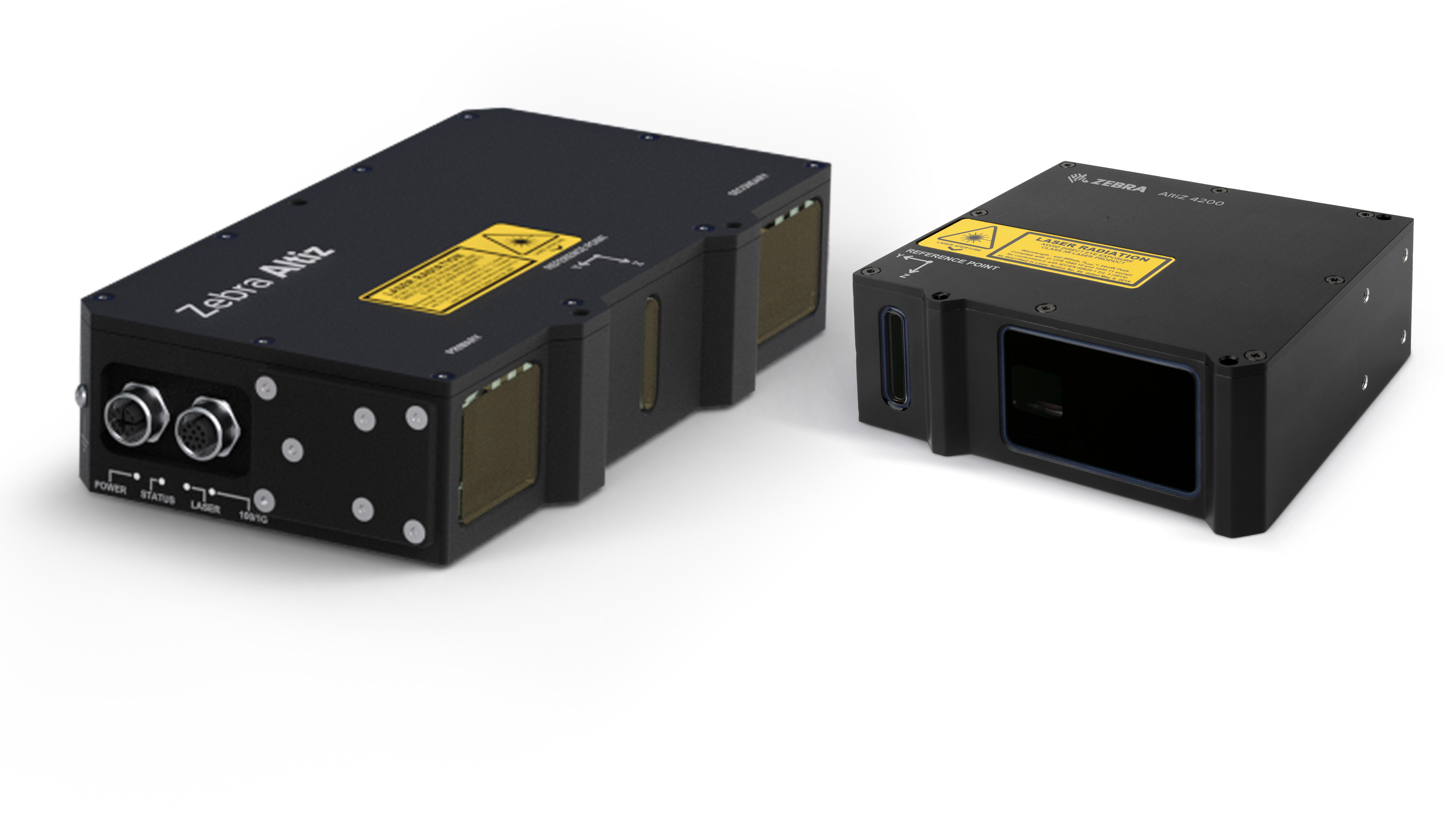

AltiZ 3D Profile Sensor provides high-resolution structured-light profiling for consistent micron-level measurements. This sensor extends inspection by measuring solder joint height, volume, and coplanarity, identifying issues like insufficient solder and lifted leads that a 2D inspection might miss. Further downstream, a fixed industrial scanner can help confirm component IDs, lot codes, and revisions, linking each board’s barcode to its inspection data. This connection facilitates traceability, faster root-cause analysis, and efficient exception handling by logging any unread or out-of-tolerance conditions.
Aurora Imaging Library is a machine vision software development kit (SDK) that provides the tools to build and customize AOI systems for printed circuit board (PCB) inspection. It enables developers to create solutions for detecting defects, measuring dimensions, verifying components, and performing both 2D and 3D inspections. Aurora Imaging Library’s tools are integral to various stages of PCB manufacturing, such as pre-reflow, component placement, and post-reflow inspections, automating tasks that are traditionally error-prone and time-consuming. Its hardware-independent architecture, featuring a consistent API, ensures compatibility with a wide range of cameras and frame grabbers, minimizing code changes during hardware upgrades and protecting developers’ investments. The library also supports accelerated application development through tools like Aurora CoPilot, which simplifies prototyping, automates code generation, and streamlines hardware integration.
