8000T UltraCool

Thermal Transfer Label Can Withstand Temperatures Down to -80°C

The reliable identification of micro-organisms, serum, biological components and lab samples in ultra-low temperature freezer environments is vital to ensuring accurate medical research and efficient laboratory processing. Only select labels can withstand ultra-low freezer environments. If the label becomes unreadable or missing, it can impact the success of a clinical trial, or lead to specimen and sample wastage and the need to re-collect and test samples – potentially delaying patient diagnosis and treatment. Zebra’s 8000T UltraCool is a thermal transfer material that requires the use of a ribbon to create a more durable image. It features a specialty low-temperature adhesive for -80°C storage, ensuring critical assets remain identifiable until used, tested, or disposed of.

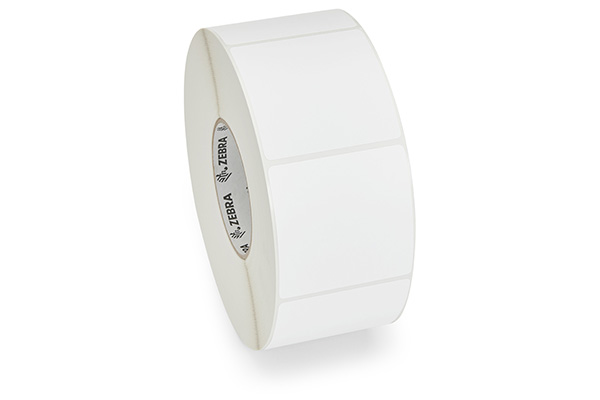

8000T UltraCool Thermal Transfer Label

Designed to maintain adhesion

The 8000T UltraCool label has been designed to maintain adhesion even when exposed to temperatures down to -80°C, so that the labeled items that require ultra-low temperature storage remain identifiable to staff. It is vital that labels remain in place to avoid costly duplication of specimen and sample processing and potential errors.

Reliable readability

When the label is printed with our 5095 high performance resin ribbon and applied to containers that are stored in an ultra-low temperature freezer, the print will remain legible, ensuring visibility of the specimen identity over extended periods of time and for repeated inspections.

Print Confident, Print Quality with Zebra Certified Supplies

Printing supplies can impact everything from printhead lifespan to operational efficiency. That’s why we design, produce and rigorously pre-test our own line of thermal printing supplies to ensure consistent, optimized performance. We utilize an ISO 9001 certified, 23-point quality inspection to ensure consistent quality. No matter when you order your labels, you can count on the same great performance.


Reliably identify micro-organisms, serum, biological components and lab samples in ultra-low temperature environments with the 8000T UltraCool label.

For more information, please visit www.zebra.com/barcodesupplies

Specifications

Material Construction

Facestock

Gloss coated polypropylene
56 microns

Adhesive

Acrylic based permanent adhesive
22 microns

Liner

White glassine liner
53 microns

Total Thickness (+/- 10%) 131 microns
Environment Indoor use, Ultra-Low Temperature compatible

Temperature Performance

Minimum Application Temperature -10º C
Service Temperature Range -80º C to 80º C

Recommended Printers and Ribbons

Printers Mid-range and high performance thermal printers
Ribbons Compatible with 5095

Adhesive Strength

Corrugate N/A
Steel N/A
Polycarbonate N/A
Polyethylene N/A

Chemical Resistance

Weak Chemicals
Blood Test in your application
Body Fluid Test in your application
Salt Water Test in your application
Water Test in your application
Window Cleaner Test in your application
Moderate Chemicals
Alcohol Test in your application
Ammonia Test in your application
Bleach Test in your application
IPA Test in your application
Harsh Chemicals
Gasoline Not Recommended
Grease Not Recommended
Extreme Chemicals
Acetone Not Recommended
IR Reflow Not Recommended
MEK Not Recommended
TCE Not Recommended
Xylene Not Recommended

Product Performance & Suitability

Recommended storage conditions 1 year duration when stored at 20º C at 50% RH
Expected life span in application

Indoor use, up to 1 year
Outdoor use, up to 6 months

Sample Part Number SAMPLE30739

Material Testing in End Application

The information contained in this document is to be used for guidance only and is not intended for use in setting specifications. All purchasers of Zebra products shall be solely responsible for independently determining if the product conforms to all requirements of their unique application.

Warranty

Supplies are warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For the complete warranty statement, please visit:
www.zebra.com/warranty

Markets and Applications

Healthcare

  • Medical laboratories and specimen labeling
  • Labeling of samples subjected to freeze-thaw cycles
  • Cold temperature applications. For use in ULT (Ultra-Low Temperature freezers), micro-organism labeling biological and micro-organism samples
