Barcode Scanners

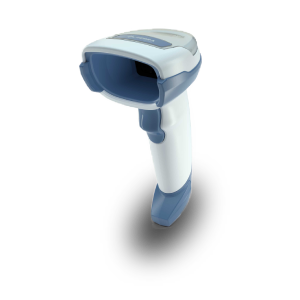

DS4608-HC General Purpose Scanner Support

Models

DS4608-HC

The Setup guidelines below will take you to English documentation. You can access the localized User Guides in the MANUALS section.

Confirm that you have the following equipment.

  • DS4608-HC scanner
  • Zebra proprietary USB cable
  • (Other host interfaces setup are described in the DS4608-HC Scanner Product Reference Guide (for example,  Keyboard Wedge Interface)

First Time Connection steps

1.    Connect the RJ41 end of the USB cable to the handle of the DS4608-HC scanner.

2.    Connect the USB end of the cable to your computer USB port.

3.    The DS4608-HC will power up with low, medium, high beeps

4.    Pull the DS4608-HC trigger and confirm a scan beam is present.

5.    Scan Return to Factory Defaults programming barcode from the DS4608-HC Quick Start Guide.

Note: When scanning a programming barcode from a screen/monitor, increase magnification to a minimum of 125%. This will ensure good barcode quality for a successful scan.

6.    To test sending a barcode, open a text document in an application such as Microsoft Word or Notepad.

Ensure that you can type into the text document using your keyboard.

Scan a product barcode.

7.    The scanned barcode will be displayed in the text document.

Keyboard Language (Country Code) Information

If Windows is configured for a region’s local keyboard and does not use an English keyboard layout, transferred barcode data may appear inaccurate.

Identify the language Windows uses and scan a compatible keyboard language configuration barcode (country code) USB Country Keyboard Types (Country Codes)

Consult the DS4608 Imaging Scanner Product Reference Guide (or available language copy) for additional scanner setup information.
