1504L 15" Touchscreen Monitor

In the Box

  • 1504L Touchscreen Monitor
    1504L Touchscreen Monitor

  • Quick Install Guide
    Quick Install Guide

  • Power and interface cables
    Power and interface cables

Key Features

  • Display: 15.6-inch Full HD 1920 x 1080
    Display: 15.6-inch Full HD 1920 x 1080

  • Touch: TouchPro® PCAP with 10-touch capability
    Touch: TouchPro® PCAP with 10-touch capability

  • Connectivity: USB-C, DisplayPort, HDMI and USB touch, 4x Elo Edge Connect MIcro-USB
    Connectivity: USB-C, DisplayPort, HDMI and USB touch, 4x Elo Edge Connect MIcro-USB

  • Features: Optical bonding, IP54-sealed design, IK08 impact resistance, anti-glare glass and low-blue-light settings
    Features: Optical bonding, IP54-sealed design, IK08 impact resistance, anti-glare glass and low-blue-light settings

Description

The Elo 1504L delivers a clear, responsive 15-inch Full HD touchscreen for high-use environments. Optical bonding and anti-glare glass improve image clarity, while the IP54-sealed design and IK08 impact rating add protection against daily wear. Flexible connectivity and mounting options make it easy to integrate across POS, self-service, kitchen display and industrial applications.

Commonly Used For

  • Point-of-sale
    Point-of-sale

  • Self-service
    Self-service

  • Kitchen display systems
    Kitchen display systems

  • Warehouse automation
    Warehouse automation

  • Access control and HMI
    Access control and HMI

Part Numbers

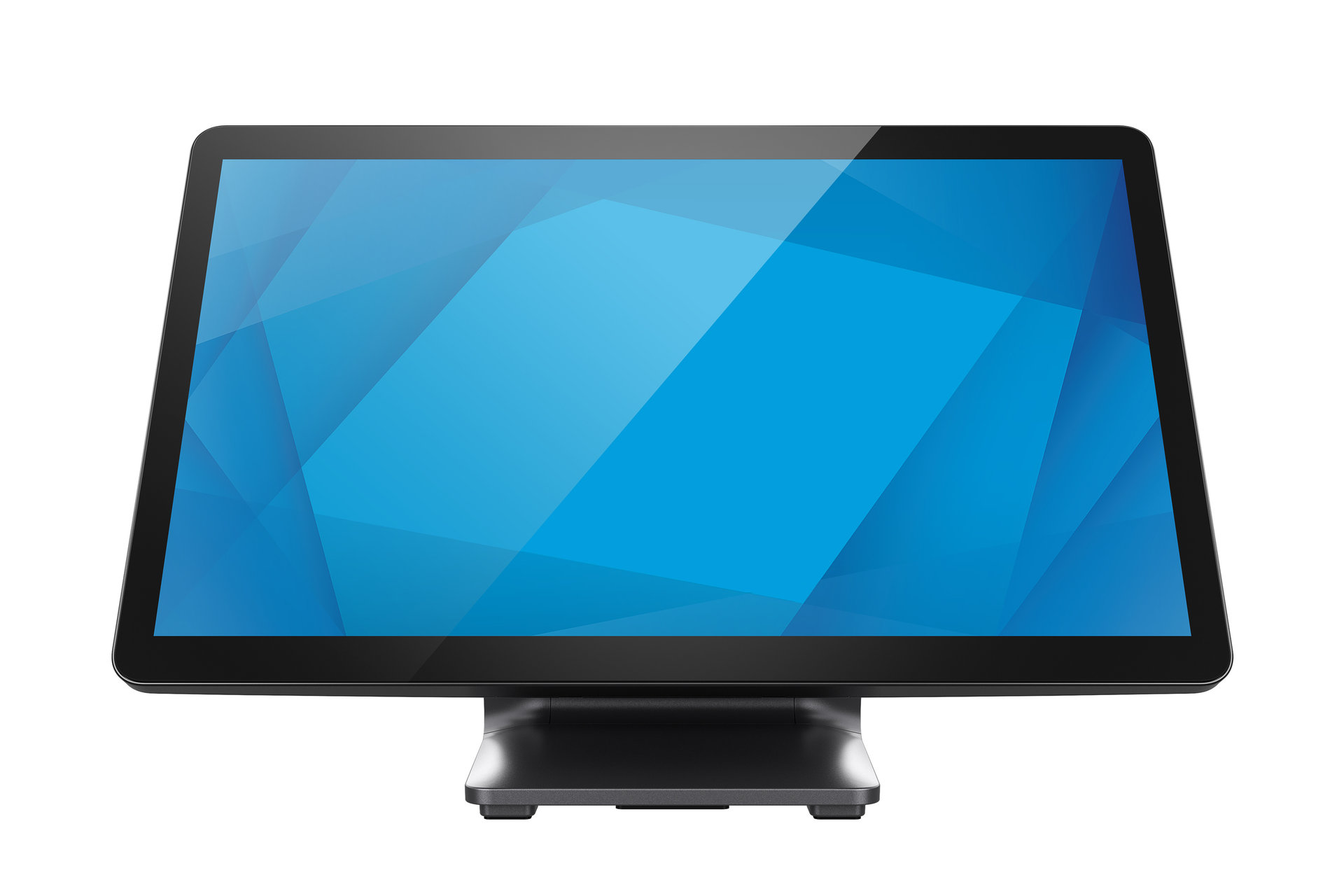

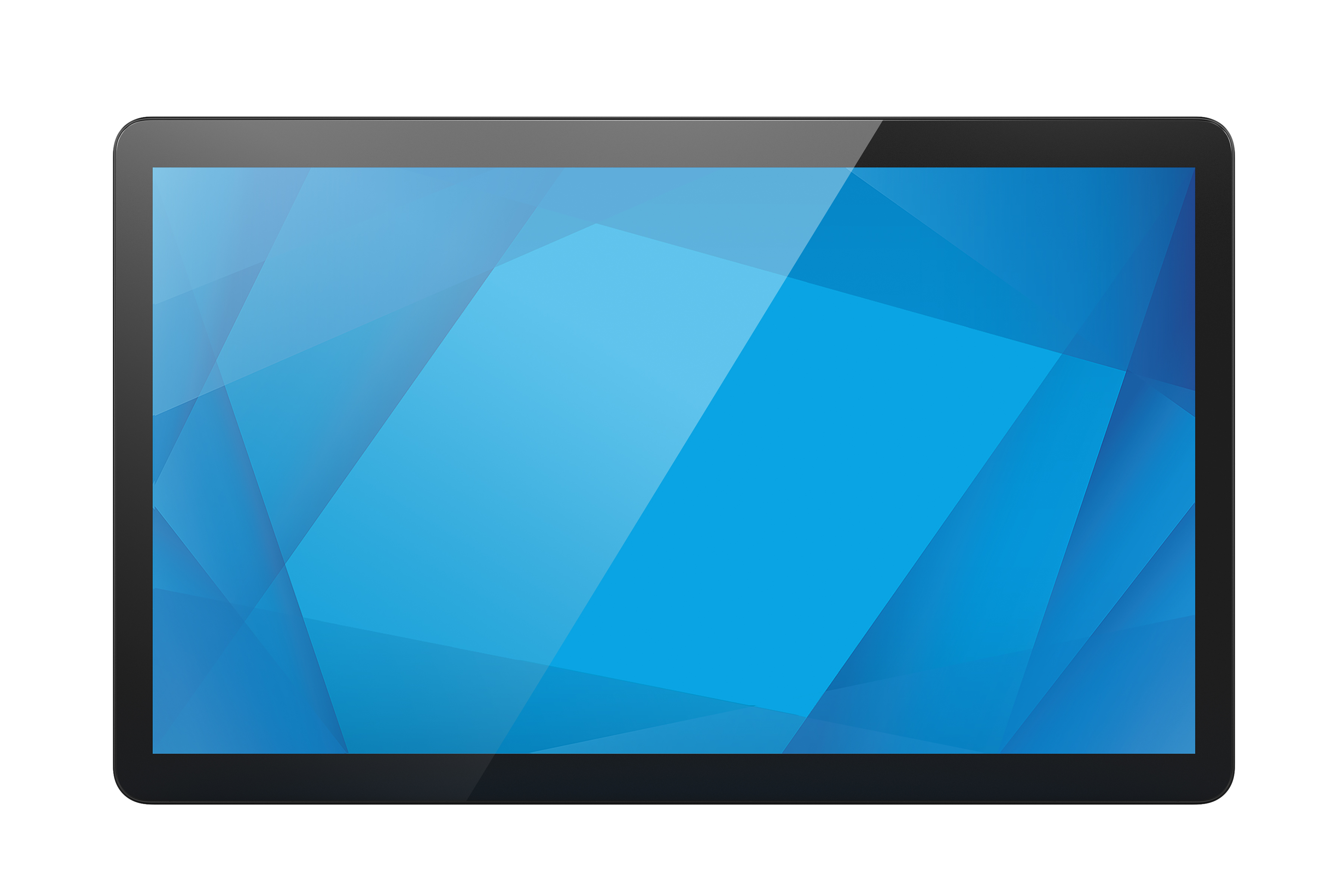

E969493 - Black with stand, E969292 - Black without stand

Warranty Information

Subject to the terms of Elo's Limited Warranty, and unless otherwise stated on Elo's website or in the Materials included with the Product, the 1504L Touchscreen Monitor is warranted for a period of three years from the date of Elo's invoice (or upon request, Customer's proof of purchase date), against defects in materials and workmanship, provided the Product remains unmodified and is operated under normal and proper conditions and in accordance with Elo's published specifications. Limited Warranty Terms apply.
