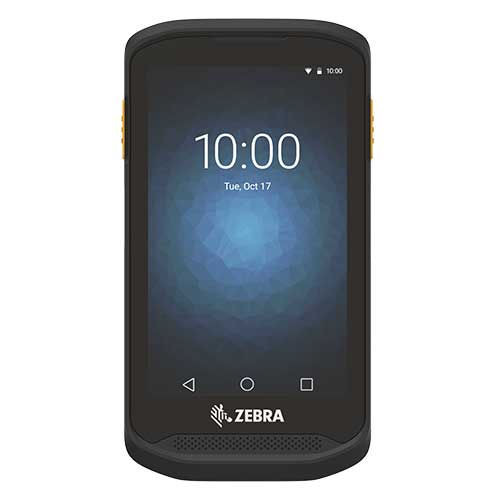

The TC25 Rugged Smartphone

The Rugged Smartphone Designed for Your Small Business

There are a lot of smartphone choices. But when it comes to work, the TC25 wins.

You spend your days making deliveries, repairing equipment or providing services — from plumbing and electrical to parcel delivery, yard maintenance and more. Every day, there’s so much to do, so little time to get it done — and so many competitors for your customers to call if you can’t get the job done fast enough. You need a tool that can help you work faster and smarter. You need the TC25. You get all the features you need to get more done and satisfy more customers every day:

  • "Just right" durable design — you can drop it on the floor and use it in the cold, heat, rain and snow — and it still works.
  • The right features— get the information you need faster than ever to slash the time it takes to perform all those everyday tasks.
  • The right service program for the right price— so you can easily keep your devices up, running and in your hands.
  • All day power, guaranteed — with the unique PowerPack snap-on extended battery.
  • The fastest cellular speeds — delivering fast application access and great voice quality.

For work, we win.

TC25

Save Time and Money, Increase Sales and Boost Profitability With the TC25 — the Rugged Smartphone for Small Business.

Built For Work

Rain. Heat. Sub-zero cold. Drops. Spills. The TC25 can handle it all.

All Day Power — Always

No need for a charger — just snap on the unique PowerPack and keep on working.

A Real Scanner for Real Time-Savings

Smartphone cameras aren’t built for barcode scanning — that’s why the TC25 delivers the same scanning technology that drives many of the world’s field service teams. You get instant and effortless point-and-shoot capture of any electronic or printed barcode in virtually any condition — no aiming and no waiting. So no matter what your workers are doing, with a real Zebra scanner inside, they’ll get it done faster, more accurately and more efficiently — boosting workforce productivity, customer service and profitability.

Instantly Document Everything

From proof of delivery to a damaged package or a completed repair, you can document it all with the 8 MP autofocus color camera.

The Right Service Plan for the Right Price

With Zebra OneCare™ SV, you get two years of coverage for normal wear and tear and device failure, unmatched from-the-manufacturer technical support, a Device Diagnostics Tool for onsite troubleshooting, priority repair turnaround time, free return shipping and more — all for a fraction of the cost of a single, uncovered repair. And when you add LifeGuard TM for Android TM to your service plan, you get true peace of mind — guaranteed security updates throughout the lifecycle of your TC25 mobile computer.

Easy to Use — No Learning Curve

The TC25 makes it so easy to do business. With Android, you get pinch and zoom and all the same familiar gestures you already use on your personal smartphone. The screen is just as easy to see outside as it is indoors. The large touchscreen displays all the information you need to see — without scrolling. And three programmable buttons provide instant access your most used features and applications.

Doubles As a Walkie-Talkie

With an instant voice connection and secure text messaging, you can reach a specific worker, a specific group of workers, or all of your workers at the press of a button. And with secure text messaging, you can still reach workers, even when a phone call isn’t appropriate.*

Fast Cellular Connections for Crystal Clear Voice Calls and Great Application Performance

With support for 4G and VoLTE, you get HD calling for exceptional voice clarity and fast connections. And with three to six times the data bandwidth over 3G or 2G, you can count on fast app performance and rapid screen draws.

Fast Bluetooth and Wi-Fi

The fastest Bluetooth connections mean great performance for Bluetooth headsets and printers. And with 802.11ac, you can switch to fast Wi-Fi connections when you’re in the office, at home or in a public hot spot, without sacrificing connection quality.

It’s a Snap to Enter Barcodes into Your Apps

Send barcodes captured with the scanner right into your existing apps with Zebra’s DataWedge — no programming or modification of your existing apps required. The result? A big time-savings — without any cost.


Get more done in less time with the TC25 the rugged smartphone designed for your small business. For work, we win.

For more information, visit www.zebra.com/tc25

TC25 Specifications

Physical Characteristics
Dimensions 5.27 in. L x 2.82 in. W x .63 in. D
134 mm L x 73.1 mm W x 16 mm D
Weight 6.88 oz./195 g
Display 4.3 in. color WVGA (800x480); LED backlight; Corning Gorilla Glass
Imager Window Corning Gorilla Glass
Touch Panel Capacitive Touch Panel; multi-touch
Power Non-removable / serviceable
Rechargeable Li-Ion: standard capacity, 3000mAh
Charge in under 4 hours (10 hours = 1 shift)
RTC backup
Expansion Slot One 128GB micro SD slot
SIM 1 Nano SIM slot
Network Connections 1 USB OTG - host/client (Type C connector)
Notifications Audible tone, multi-colored LEDs, vibration
Keypad On-screen keypad
Audio Speaker - 1 Watt (94dBA)
Voice support (Internal speaker/microphone)
Two (2) microphones
Buttons Scan on each side, Volume Up/Down, Power, push-to-talk (PTT) keys
Performance Characteristics
CPU QCOM MSM8937® 64-bit 8-Core, ARM® Cortex A53 1.4GHz, 512KB L2 cache, power-optimization
Operating System Android Nougat 7.X
Memory 2GB RAM/16GB Flash memory
Security Verified Boot
User Environment
Operating Temperature

14° F to 122° F / -10° C to 50° C

Storage Temperature -40° F to 158° F / -40° C to 70° C
Drop Specifications Multiple 4 ft./1.2 m drop to tile over concrete per MIL-STD 810G at room temperature
Tumble Specifications 300 tumbles, 1.6 ft./0.5 m
Sealing IP65
Vibration 4G peak, 5Hz to 2kHz, 1 hour duration per axis
Thermal Shock -40°C to 70°C rapid transition 10 cycles: (1 cycle = 1.25 hours at -40°C and 1.25 hours at 70°C)
Electrostatic Discharge (ESD) +/-15kv Air, +/-8kv contact
+/-8kv charge body
Interactive Sensor Technology (IST)
Accelerometer (3-axis), ambient light sensor, proximity sensor
Data Capture
Scanning SE2100 1D/2D imager
SE4710 1D/2D imager
Rear Camera 8MP autofocus color camera with flash
Wireless WAN Data & Voice Communications
Radio Frequency Band

TC25 Americas:

  • LTE: B2, B4, B5, B12, B17
  • WCDMA: B2, B4, B5
  • GSM: 850,900,1800,1900


TC25 Rest Of World:

  • LTE: B1, B3, B7, B8, B20, B28
  • WCDMA: B1, B5, B8
  • GSM: 850,900,1800,1900


TC25 China:

  • LTE FDD: B1, B3
  • LTE TDD: B39, B40, B41
  • WCDMA: B1, B8
  • TDSCDMA B34, B39 (Diversity not supported)
  • GSM: 900,1800
Voice Communications

Workforce Connect Push-to-Talk (PTT) Express (Integrated complimentary software application for instant PTT walkie-talkie style calls inside the four walls).

Workforce Connect Push-to-Talk (PTT) Pro (Optional easy-to-deploy subscriptions service that provides instant PTT walkie-talkie style calls inside and outside the four walls).

GPS GPS with A-GPS (Glonass, BeiDou)
Wireless LAN
WLAN Radio 802.11a/b/g/n/ac/d/r/h/i IPv4, IPv6
Data Rates 2.4 GHz: 20 MHz, 40 MHz
5 GHz: 20 MHz, 40 MHz, 80 MHz
Operating Channels

2.4 GHz (channels 1-13; 1-11(US))
5 GHz (channels 36-48, 52-64, 100-144, 149-165)

Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency.

Security and Encryption WPA/WPA2 (PSK & Enterprise 802.1x); EAP-TTLS; PEAPv0-MSCHAPv2; EAP-TLS
Certifications 802.11a/b/g/n; WPA; WPA2
Fast Roam 802.11r
Wireless PAN
Bluetooth Bluetooth 4.2 BLE
Warranty
Subject to the terms of Zebra’s hardware warranty statement, the TC25 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit: www.zebra.com/warranty
Recommended Services
Zebra OneCareTM SV
*Workforce Connect PTT Express provides basic push-to-talk services between TC25 and other compatible Zebra mobile devices inside the four walls for no cost. Workforce Connect PTT Pro is a cost-effective subscription service that provides comprehensive push-to-talk and secure text messaging services between TC25 and other compatible Zebra mobile devices outside the four walls.
Mobility DNA Solutions
Mobility DNA is available on Android only. Features may vary by model and a Support Contract may be required. To learn what solutions are supported, please visit: https://developer.zebra.com/mobilitydna

Where can you put the TC25 to work?
  • Field Service
  • Direct Store Delivery (DSD)
  • Route accounting
  • Postal
  • Courier





©2018 ZIH Corp and/or its affiliates. All rights reserved. Zebra and the stylized Zebra head are trademarks of ZIH Corp, registered in many jurisdictions worldwide. All other trademarks are the property of their respective owners.

Part number: SS-TC25 02/02/2018
