BoingTech™ BT0573 U9 Inlay

General purpose 72 mm wide inlay

A successful RFID solution requires high-performing thermal labels and inlays. As the global leader in RFID technologies offering end-to-end RFID solutions, Zebra is your trusted expert in all things RFID. Certified by Zebra, the BoingTech BT0573 U9 inlay provides high-sensitivity and longer read ranges for industry-leading performance. BoingTech BT0573 U9 inlays are pre-tested to work seamlessly with Zebra printers and readers to help maximize the benefits of RFID across your enterprise.

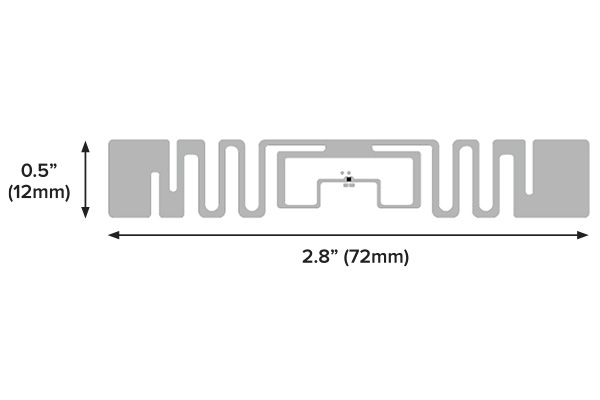

BoingTech™ BT0573 U9 Inlay Spec Sheet Product Image

High Sensitivity for Longer Read Ranges

Designed with a high-sensitivity NXP UCODE 8 chipset, the BoingTech BT0573 U9 inlay delivers read ranges up to 18 m resulting in over 50% further than other inlays in its class.

Exceptionally Consistent and Consistently Exceptional Custom RFID Labeling Solutions

With our state-of-the-art presses and RFID manufacturing equipment, we can create a customized RFID labeling solution to meet the unique requirements of your application. We use the same material from order-to-order, and never substitute materials, to safeguard consistency and quality.

Zebra Certified to Ensure Industry-Leading Performance and Low Instance of Printer Voids

Zebra’s Supplies R&D team has characterized read range performance on our Voyantic Tagformance test equipment to measure performance on a variety of surfaces and orientations. Inlay positions have been tested in industrial, desktop, and mobile RFID printers so that the most effective position is matched for the printer being used, resulting in the fewest printer voids. Our combined expertise in RFID printer and label manufacturing gives you the assurance the inlay will be produced to ISO 9001 processes with consistent inlay placement.

Unmatched Expertise in RFID

Zebra offers RFID solutions customized for your application with the highest-performing inlays and chips. We have played a central role in pioneering RFID technologies and defining global standards since the mid-1990’s, when smart-label technology first appeared. We were recognized as the #1 RFID brand by the 2018 RFID Journal’s Brand Report. And we hold more than 575 RFID patents and numerous industry firsts in RFID.

BoingTech BT0573 U9 Inlay—High-performance general-purpose inlay.

For more information on the Zebra’s RFID Labeling Solutions, please visit www.zebra.com/rfidlabels

Specifications

Technical Information

Chip

NXP UCODE 9
EPC memory96 bit
User memoryN/A
TID96 bit factory locked (48 bit unique)
Read Sensitivity-24 dBm
Write Sensitivity-22 dBm
RFID StandardsEPC Gen2v2
Read RangeN/A

Theoretical Read Range: ETSI (865-868 MHz)*

Air12 m
Cardboard17 m
Fiberglass17 m
Glass15 m
PTFE21 m
Polyacetyl13 m
PVC14 m
Rubber14 m

Theoretical Read Range: FCC (902-928 MHz)*

Air18 m
Cardboard15 m
Fiberglass18 m
Glass10 m
PTFE15 m
Polyacetyl16 m
PVC17 m
Rubber10 m

Testing and Compliance

All inlays certified by Zebra have been pre-tested with Zebra printers and readers.

Product Performance and Suitability

Storage Temperature-55°C/+125°C
Operating Temperature-40°F to 158°F (-40°C to 70°C)

Warranty

Supplies are warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For the complete warranty statement, please visit:
www.zebra.com/warranty

Footnotes

*Theoretical read range data is meant to be directional. Actual performance will depend on your application and environment. Testing is recommended.

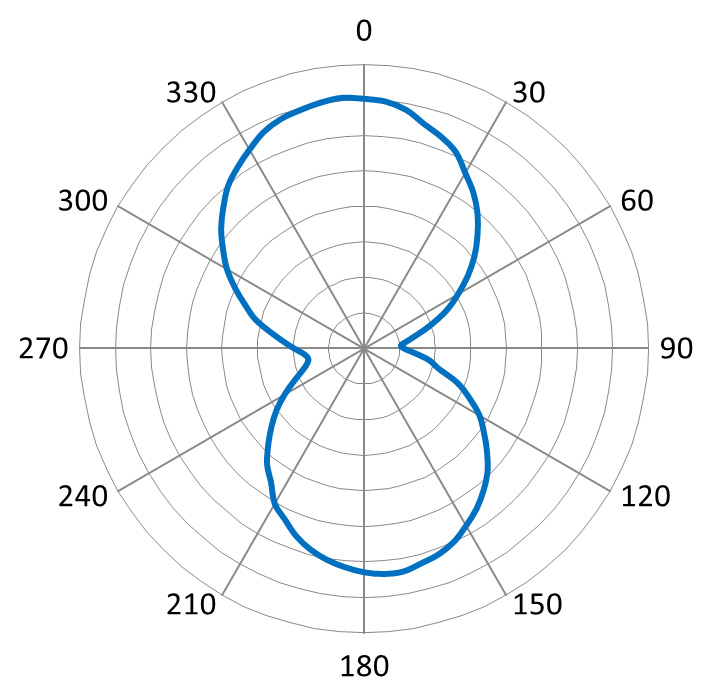

BoingTech™ BT0573 U9 Inlay Spec Sheet Radiation Pattern Image

Markets and Applications

Transportation and Logistics

  • Item/case labeling

Warehousing

  • Item/case labeling
  • Work-in-process

Retail

  • Item/case labeling
  • Exception tagging

Healthcare

  • Item/case labeling

Government

  • Item/case labeling

Manufacturing

  • Item/case labeling
