Integrated RFID Portals Series

Automated Inventory and Asset Tracking

As inventory volumes and velocities grow, companies must maintain an accurate view of where assets are located as they move through the operation.

Zebra Integrated RFID Portals empower companies to manage and monitor inventory, control costs, and optimize workflows with fast, reliable, highly automated updates when tagged assets pass through a portal or chokepoint. Fully compatible with our broad RFID portfolio, these Power over Ethernet (PoE) based integrated portals are ready to deploy.

How-to-Videos, Manuals, and Drivers

Learn More About Zebra Integrated RFID Portals

  • Fully Integrated and Ready to Sell

    Unlike competing solutions that must be assembled on site with components sourced from and supported by different manufacturers, Zebra Integrated RFID Portals are a fully assembled product, convenient and easy to deploy using Power over Ethernet (PoE).

  • Complementary Solution

    Zebra Integrated RFID Portals are fully compatible with our broad portfolio of RFID and location systems, supported and backed by Zebra for a smooth customer experience throughout the life of the product.

  • Proven technologies. Purpose-built Engineering.

    Zebra Integrated RFID Portals feature Zebra fixed RFID readers for maximum efficiency and visibility. Specialized antennas tune out cross-talk, reducing erroneous reads and sustaining a highly accurate read rate through the portal. And these portals are specifically designed for the applications they support, built to withstand transportation, logistics, manufacturing and healthcare environments.

Transition RFID Portal Photography Product Front

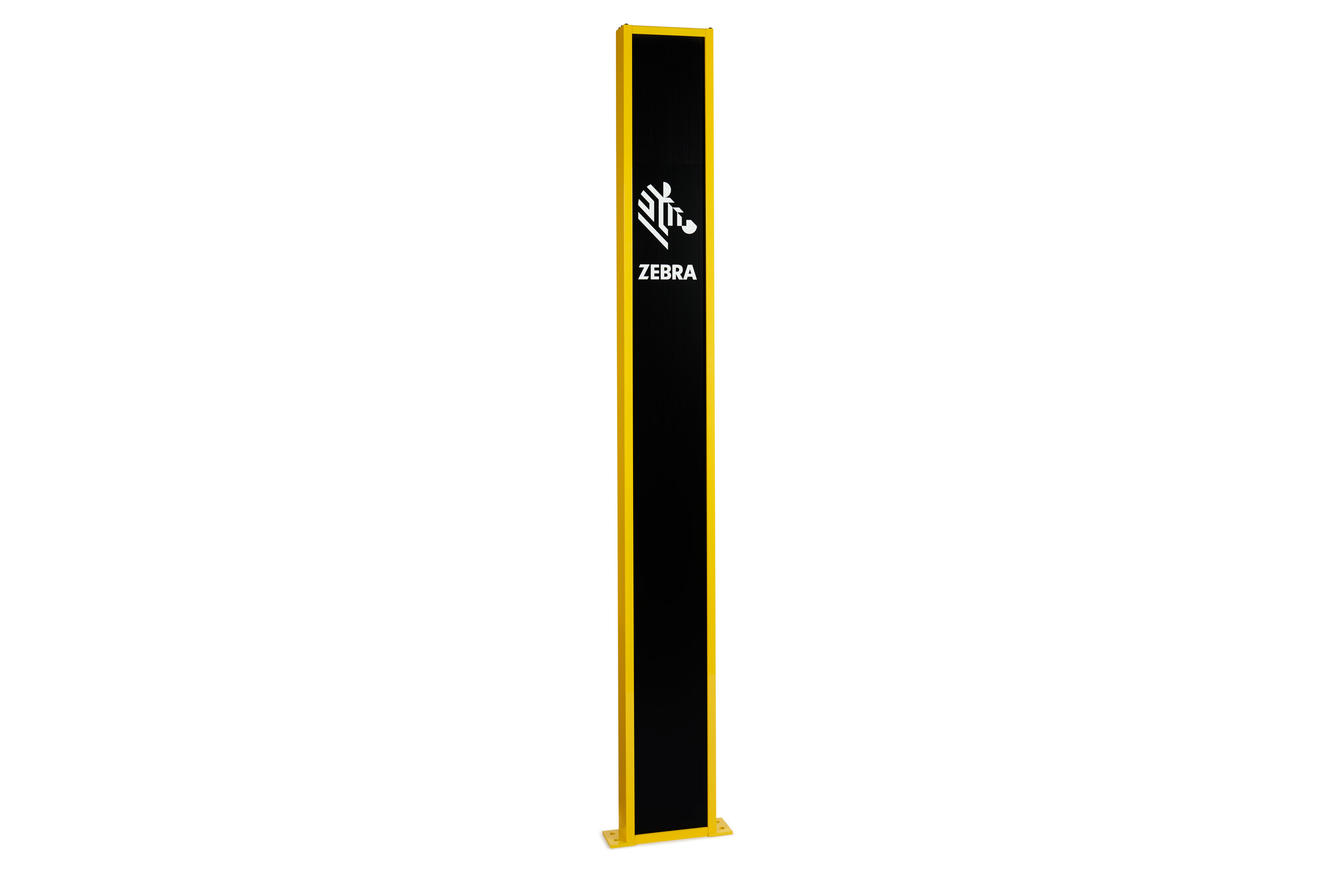

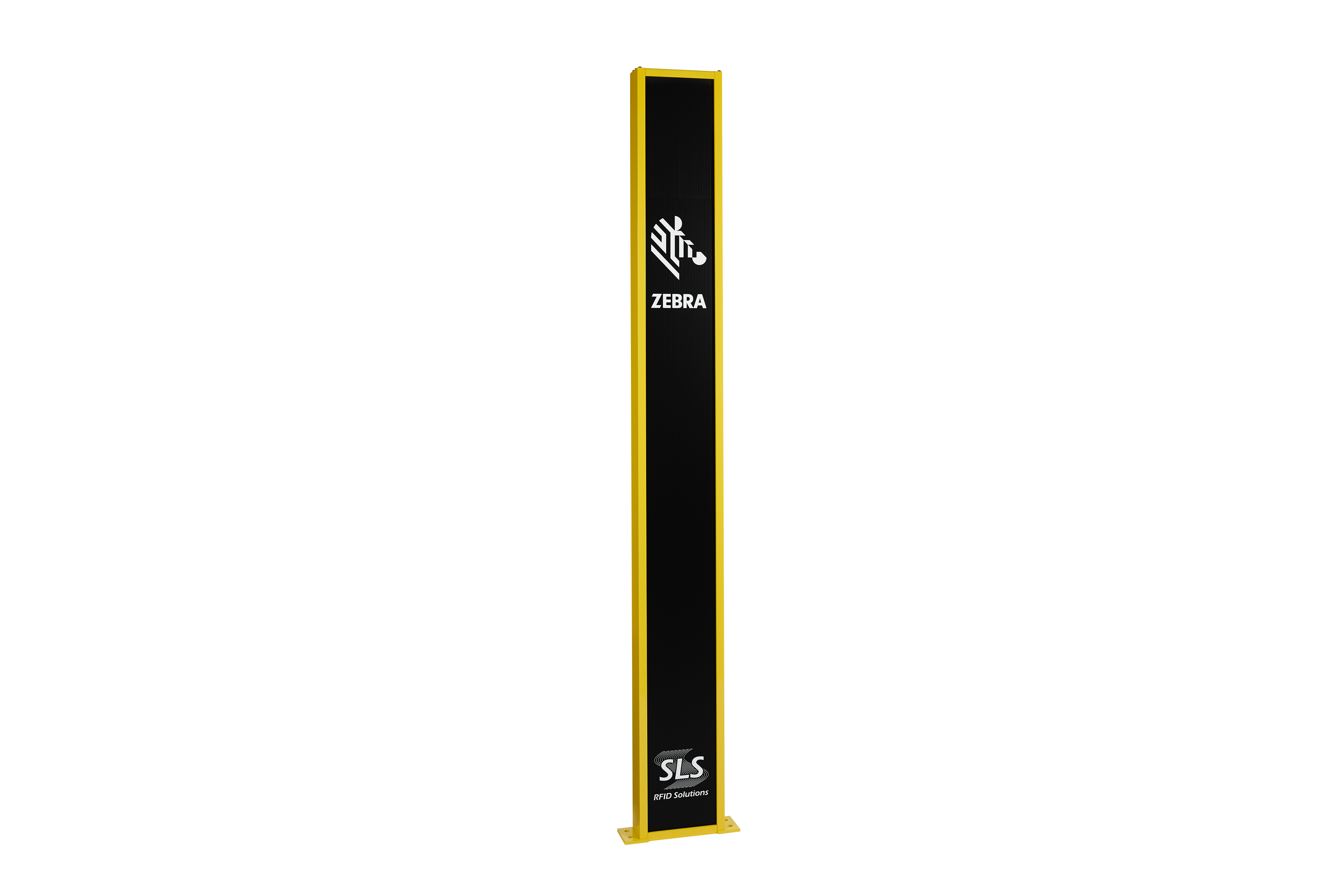

Transition RFID Portal

Reduce Manual Scanning

Fast, reliable, highly automated updates. Used primarily at dock doors, these integrated portals can reduce the need for human intervention and manual scanning at common chokepoints. Specialized antennas tune out cross-talk, reducing erroneous reads and sustaining a highly accurate read rate through the portal.

  • Dimensions

    96in. x 15in. x 4in. (244 x 38 x 10 cm)

    62in. x 15in. x 4in. (158 x 38 x 10 cm)

  • Weight

    45 lbs (21 kg)

    30 lbs (14 kg)

  • RFID Reader

    Zebra FX9600 RFID Reader

  • RFID Antenna

    Multi-linear Wave(r) Antenna

Wall-Mount RFID Portal Photography Product Front

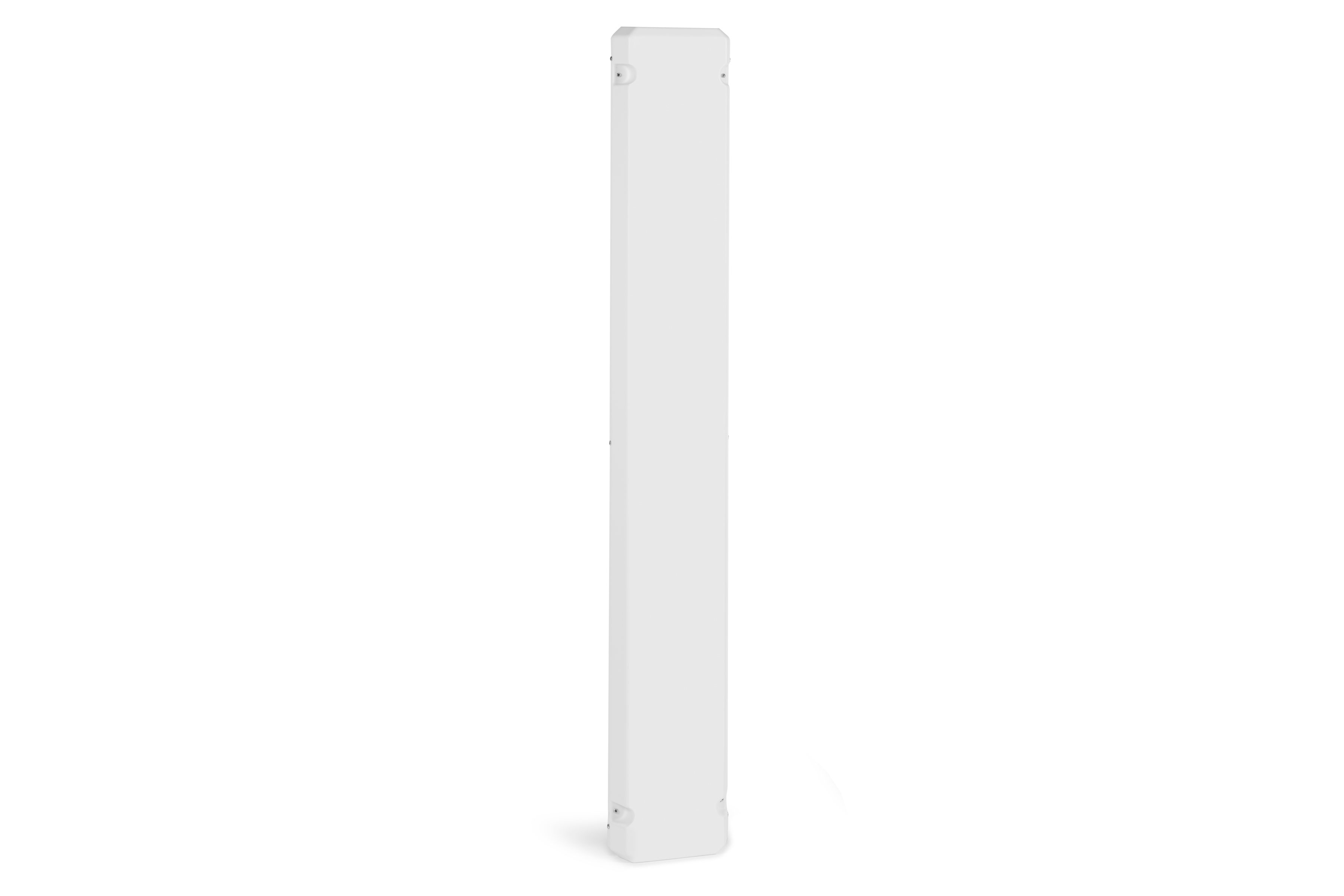

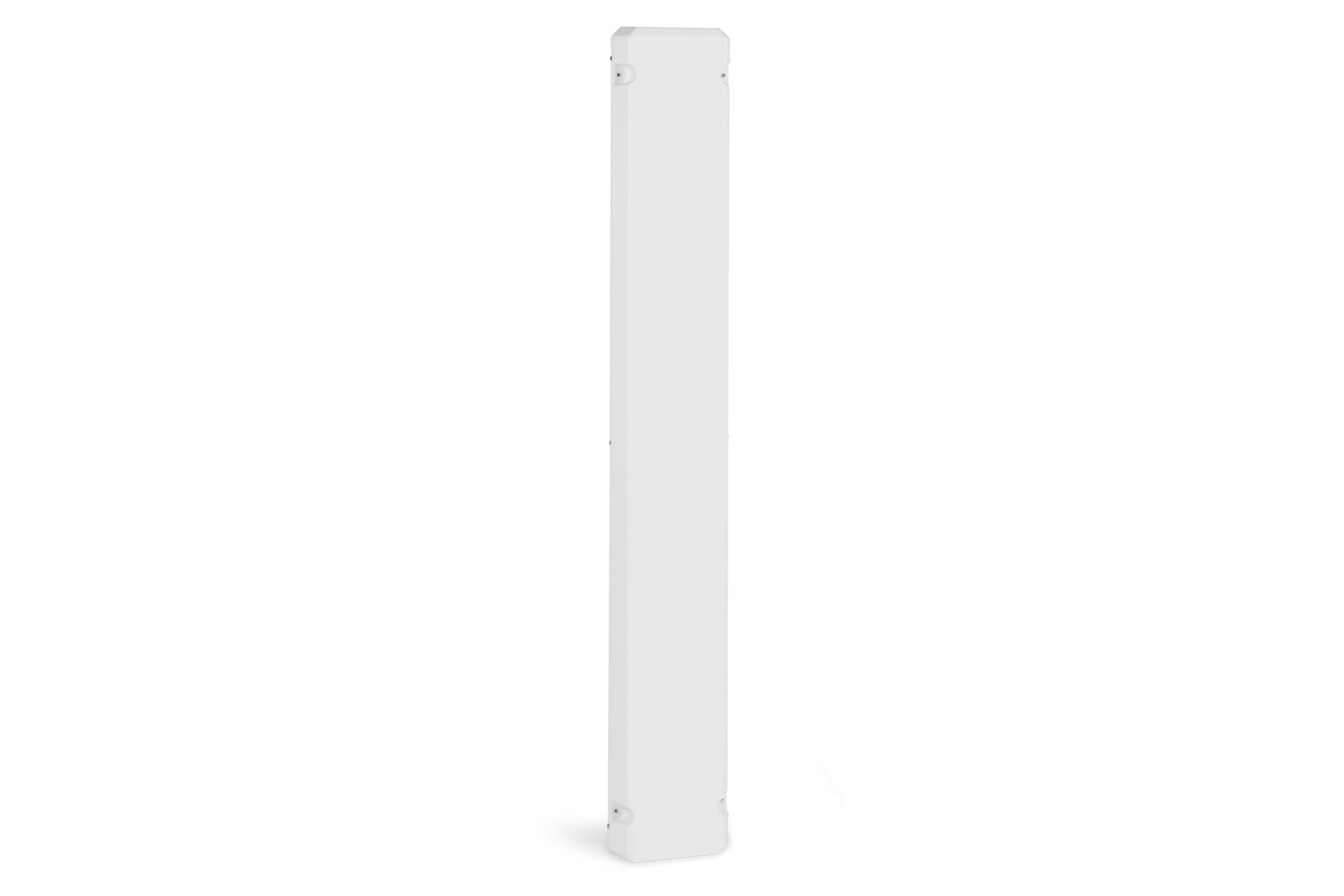

Wall-Mount RFID Portal

Fits Right In

These fully enclosed, plug-and-play units mount easily beside doorways and hallways near storage rooms, offices and warehouses to provide versatile RFID tracking for multiple applications. Specialized antennas tune out cross-talk, reducing erroneous reads and sustaining a highly accurate read rate through the portal.

  • Dimensions

    61in. x 9in. x 2in. (155 x 23 x 5 cm)

  • Weight

    A panel: 10 lbs (5 kg)

    B panel: 8.5 lbs (4 kg)

  • RFID Reader

    Zebra FX7500 RFID Reader

  • RFID Antenna

    Multi-linear Wave(r) Antenna

Fixed RFID Tunnel Photography Product Front

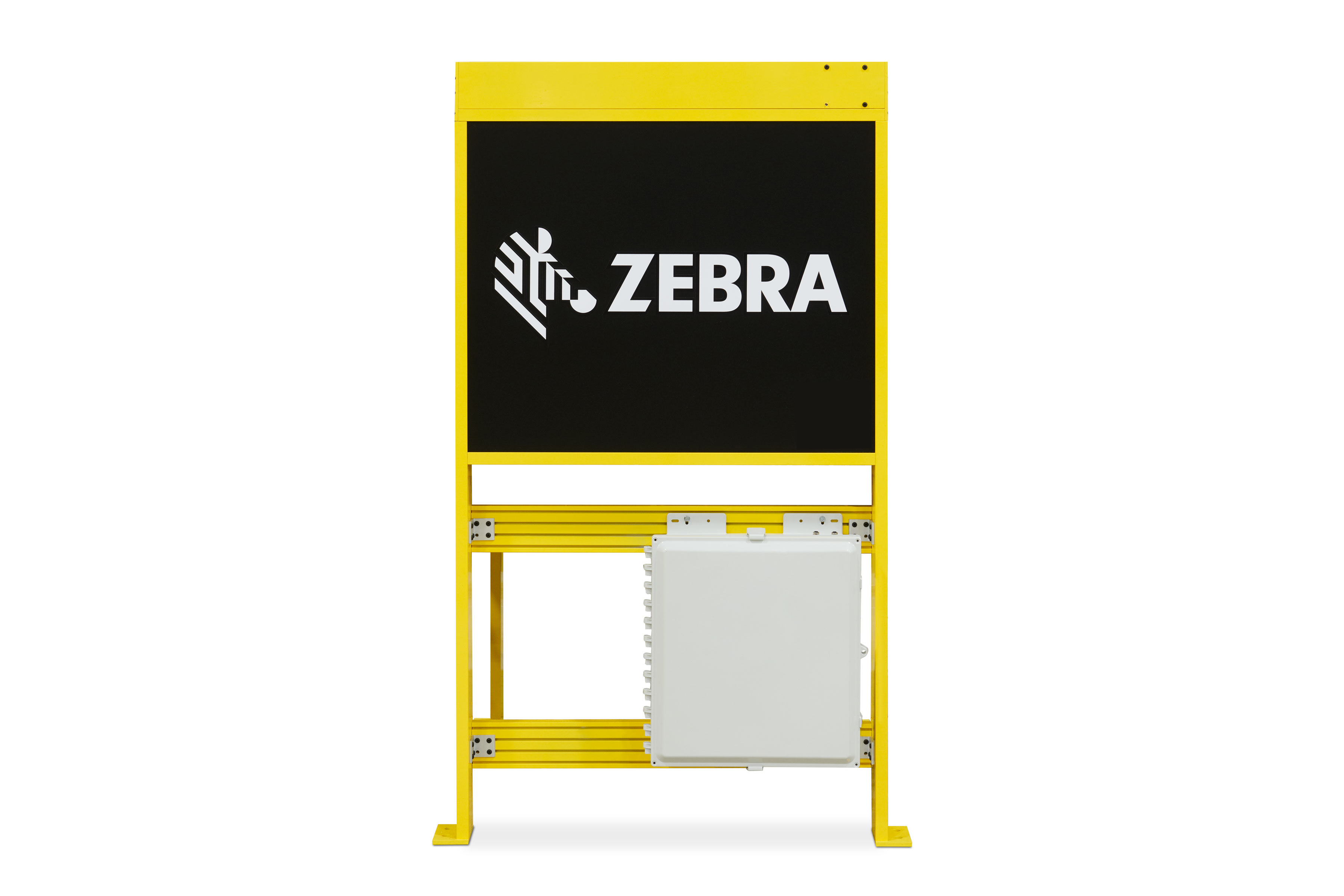

Fixed RFID Tunnel

Improved Conveyor Throughput

Built especially for inline conveyor operations, these units automatically read tagged assets as they move along the line and through the tunnel, improving workflow accuracy. Specialized antennas provide superior performance optimized for accurate, reliable reads of conveyor-based throughput.

  • Dimensions

    Custom built to fit existing operation

    Standard outer: 42in. L x 35in. W x 64in. H (107 x 89 x 163 cm)

    Standard inner: 42in. L x 29in. W x 30in. H (107 x 74 x 76 cm)

  • Weight

    200 lbs (91 kg)

  • RFID Reader

    Zebra FX9600 RFID Reader

  • RFID Antenna

    Multi-linear Wave(r) Antenna

Integrated RFID Table Photography Product Front

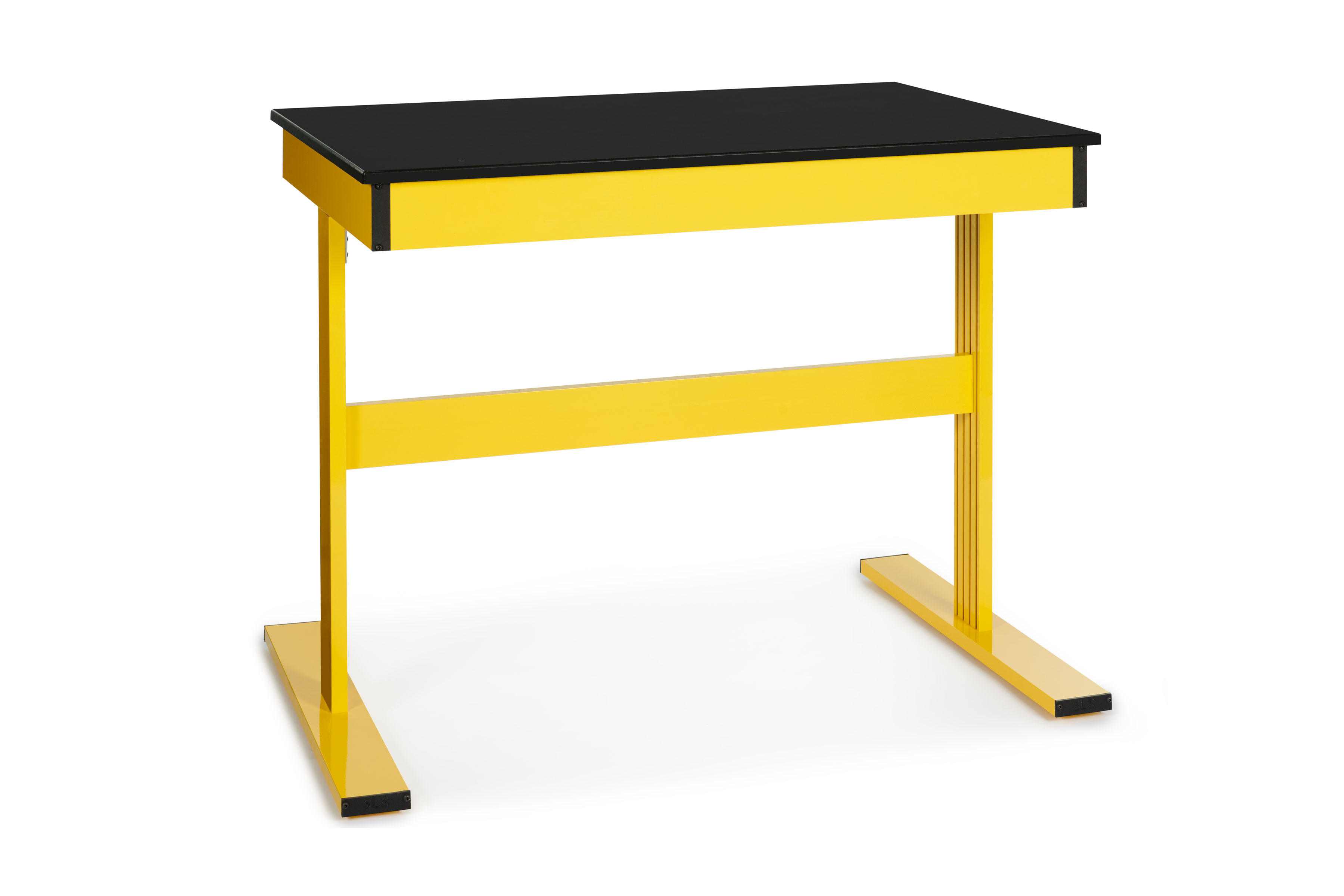

Integrated RFID Table

Tabletop Accuracy

RFID antennas mounted underneath the table are specially configured to read items placed on the surface in any orientation. Specialized antennas provide superior performance for fast, accurate, confident reads in multiple orientations across the table surface.

  • Dimensions

    48.5in. L x 31.5in. W x 38in. H (123 x 80 x 97 cm)

  • Weight

    100 lbs (46 kg)

  • RFID Reader

    Adjustable height table:
    Zebra FX9600 RFID Reader


    Fixed height table:

    Zebra FX9600 RFID Reader
    Zebra FX7500 RFID Reader

  • RFID Antenna

    Multi-linear Wave(r) Antenna

Mobile RFID Pallet Photography Product Right

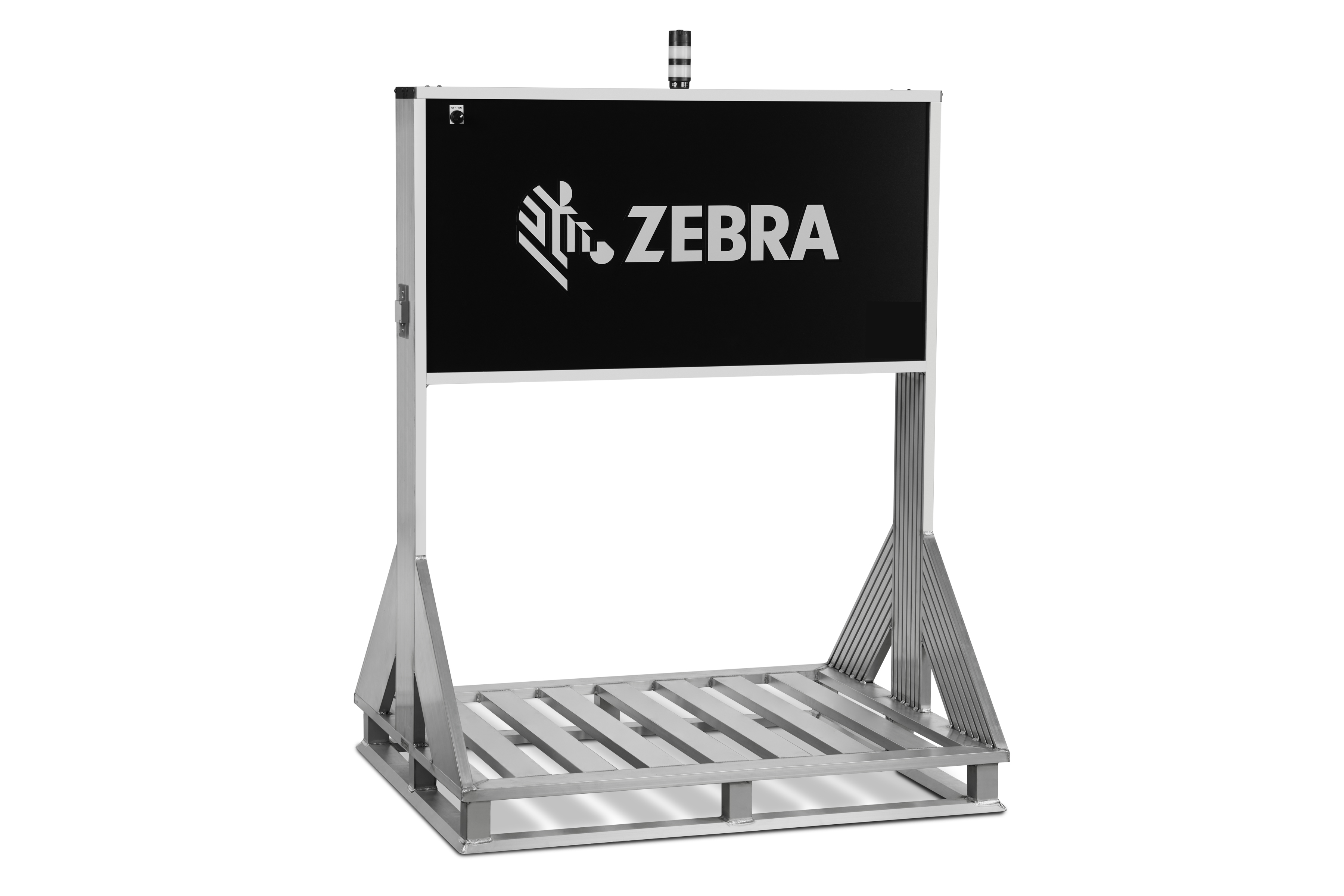

Mobile RFID Pallet

Elevated Reading

Ideal for areas with elevated racking and high tag volumes, these pallet-mounted RFID readers are designed to travel through storage aisles by forklift, collecting accurate information quickly and safely.

  • Dimensions

    42in. L x 48in. W x 70in. H (107 x 122 x 178 cm)

  • Weight

    160 lbs/73 kg

  • RFID Reader

    Zebra FX9600 RFID Reader

  • RFID Antenna

    Multi-linear Wave(r) Antenna
