TC26 CBRS Touch Computer

The ultimate cost-effective touch computer built for small and big business

If you’re considering purchasing low-cost mobile phones for your workers, step up to the TC26 CBRS Touch Computer — without stepping up in price. Help your workers access the data they need to act more efficiently. With multiple configurations at different price points, you pay only for the features your workers need. With cellular, CBRS and WiFi, your workers get the comprehensive connectivity options they need to stay connected out in the field and in the office. Powerful complimentary Mobility DNA tools are pre-loaded and ready to use, making it easier to stage, secure and troubleshoot devices; capture and send data to your applications right out of the box; and much more. Plus, the Mobility DNA Enterprise License delivers premium voice capabilities over WiFi and unlocks a powerful data toolkit that takes workforce productivity and device management simplicity to a new level.

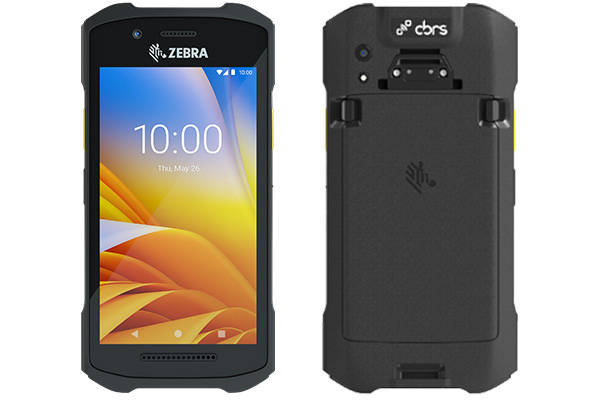

TC26 CBRS Touch Computer Spec Sheet Photo

A New Level of Features for a Value-Priced Device

Lightweight right-sized small design

Lightweight, easy to carry and easy to operate with one hand.

All the familiarity of Android

Right out of the box, your workers will know how to use the TC26 CBRS, virtually eliminating training. And built-in support for the next Android release provides superior future-proofing.

Built for business

Waterproof, dustproof, drops to concrete, snow, rain, heat, freezing cold — the TC26 can handle it all.

Plus, the display and scanner exit window are fortified with Gorilla Glass.

Large 5-Inch high definition advanced touchscreen

Get plenty of space to interact with your applications. And the touchscreen is easy to view indoors and outside in bright sunlight.

All the wireless connections you could ever need

When it comes to wireless, the class-leading TC26 offers it all — WiFi, cellular, Bluetooth, GPS, NFC and CBRS, the newest wireless networking option that enables the creation of private LTE wireless networks to meet specific business needs.

Zebra’s most powerful ‘Ultimate Series’ platform

Simultaneously run the most demanding applications of today and tomorrow. And the TC26 CBRS is a natural fit for businesses that utilize Zebra’s other mobile devices.

Capture it all with a high resolution 13 MP rear camera

From proof of delivery to a damaged package, completed repair, occasional barcode capture and more, do it all with the integrated autofocus color camera.

Superior voice quality and functionality

VoLTE delivers superior voice quality over cellular networks, while Zebra’s advanced VoWiFi technology, included with the Mobility DNA Enterprise License, delivers superior voice quality over all of your WiFi voice applications — for example, Push-to-Talk Express¹ for basic walkie-talkie style communications, the Workforce Connect PTT Pro² subscription service for walkie talkie-style communications over cellular, CBRS and WiFi networks, and Workforce Connect Voice³ to turn TC26 devices into fully-featured PBX handsets.

TC26 CBRS Touch Computer Compatibility Icons: Android Enterprise Recommended icon

Right sized. Right featured. Right price.

For more information, please visit www.zebra.com/tc26

The right service plan for the right price

Constant peak performance and device uptime. That’s the upside of protecting your investment with Zebra OneCareTM SV. Reduce device vulnerabilities, eliminate unexpected disruptions and unbudgeted repair expenses. You can also optimize your service with additional, flexible for-fee modules that provide expedited repair shipping, battery maintenance, device commissioning and cloud-based device visibility.

LifeGuardTM — a lifetime security guard for AndroidTM

LifeGuard for Android provides the security patches and updates you need to keep your TC26 devices secure every day they are in service. Included with your warranty and with all Zebra OneCare Support Service agreements.

Extensive business-class accessory family

Easily and cost-effectively manage any size device pool in any environment with single and multi-slot chargers and cradles, vehicle holders, wearable and carrying solutions and more.


The Most Options in its Class

Integrated enterprise-class scanning

With the built-in SE4710 scan engine, capturing a 1D or 2D barcode couldn’t be faster or easier. And with Zebra’s industry leading advanced algorithms, workers can capture virtually any barcode in practically any condition — even if it’s poorly printed, damaged or dirty.

A removable single or multi-shift battery

Get 10 hours of power with the standard battery, or choose the extended battery for 14 hours of power — ideal for long or double shifts. And since the battery is removable, you never need to take the device out of service for charging.

Create a hands-free wearable solution in the warehouse

The optional wrist-mount accessory provides the comfort and productivity boost of hands-free operation. And your workers can just tap to pair with Zebra’s RS5100 Bluetooth ring scanner and Zebra mobile printers.

5 MP front camera for video calls

Enable technicians in the field to collaborate with experts to increase first-time-to-fix rates, simplify on-the-job training and more.

Unparalleled Value with Complimentary Mobility DNA Tools

Add Powerful Enterprise Features with Mobility Extensions (Mx)

Choose from over a hundred features to improve the security, data capture support, wireless connectivity and device manageability of the standard Android operating system. You’re in charge — you decide what and when to activate. And features can be automatically configured via your Enterprise Mobility Management (EMM).

Stage your devices for use in seconds with StageNow

Easily stage a handful or thousands of Android devices with a quick scan of a barcode or tap on an NFC tag.

Enterprise Home Screen

Easily control the applications and device features your workers can access. And you can create different configurations for different teams, such as sales and marketing — no developer required.

It’s a snap to enter barcodes into your apps

Send barcodes captured with the scanner right into your existing apps with Zebra’s DataWedge — no programming or modification of your existing apps required. The result? A big time-savings — without any cost.

Take full advantage of data capture features with EMDK

The Zebra Enterprise Mobility Development ToolKit (EMDK) has everything you need to fully utilize data captured by any TC26 feature in your applications.

Improve device uptime with Device Diagnostics

Eliminate the high cost of needlessly sending devices that don’t need repair to the Zebra Repair Center with Device Diagnostics. This simple to use tool allows administrators and end users alike to test the main systems on Zebra mobile computers with a simple press of a button to reveal whether the device can be fixed on site — or must be sent out for repair.


Unlock a Powerful Suite of Optional Big Business Tools

Optional Mobility DNA Enterprise license

Unlock powerful voice and data tools to maximize the functionality and value of your TC26 devices. You get superior voice quality, including full-duplex voice. And a suite of innovative data solutions take device management, device security and data entry to a new level of simplicity.

Specifications

Physical Characteristics

Dimensions

With standard battery:
6.22 in. L x 3.11 in. W x .0.54 in. D
158 mm L x 79 mm W x 13.7 mm D With extended battery:
6.22 in. L x 3.11 in. W x .0.68 in. D
158 mm L x 79 mm W x 17.3 mm D

Weight 8.32 oz./236 g with standard battery; 269 g with extended battery
Display 5.0 in. color HD (1280 x 720); LED backlight; Corning® Gorilla® Glass
Imager Window Corning® Gorilla® Glass
Touch Panel Capacitive Touch Panel; multi-touch
Power

Removable/serviceable rechargeable Li-Ion
Standard battery: ≥ 3300 mAh/12.54 Wh
Extended battery: 5260 mAh/20.25 Wh

Expansion Slot One 128 GB micro SD slot
SIM 1 Nano SIM slot; optional eSIM
Network Connections WWAN, CBRS, WLAN, WPAN, USB 2.0 hi-speed (host and Client)
Notifications Audible tone; multi-color LEDs; vibration
Keypad On-screen keypad
Audio

Speaker — 1 Watt
Voice support (Internal speaker/receiver and microphones)

Buttons Scan on each side; volume up/down; power; push-to-talk (PTT) keys

Performance Characteristics

CPU Qualcomm SnapdragonTM 660 octa-core, 1.8 GHz
Operating System Android 10 with built in support for a future Android release
Memory 4 GB RAM/64 GB Flash memory; 3 GB RAM/32 GB Flash memory

User Environment

Operating Temp. 14°F to 122°F/-10°C to 50°C
Storage Temp. -22°F to 158°F/-30°C to 70°C
Humidity 5% - 95% non condensing
Drop Spec. 4 ft./1.2 m drop to concrete per MIL-STD 810G across operating temperature
Tumble Spec. 300 tumbles, 1.6 ft./0.5 m
Sealing IP67

Electrostatic Discharge (ESD)

+/-15 kV air discharge, +/-8 kV direct discharge; +/-8 kV indirect discharge

Interactive Sensor Technology (IST)

Light Sensor Automatically adjusts display backlight brightness
Motion Sensor 3-axis accelerometer with MEMS Gyro
Proximity Sensor Automatically detects when the user places the handset against head during a phone call to disable display output and touch input

Data Capture

Scanning

SE4710 1D/2D imager
Camera scanning

Camera Rear camera 13 MP; front camera 5 MP
NFC Integrated; MIFARE, ISO 14443 A&B , FeliCa , ISO 15693 and NFC Forum supported cards; read range up to 50 mm

Wireless WAN Data and Voice Communications

Radio Frequency Band

TC26 North America
• UMTS: B2/B4/B5
• LTE: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/
   B41/B48/B66
• LTE: Category 6

Voice Communications

Optional Push-to-Talk (PTT) Express¹ Mobility DNA software application for instant PTT walkie-talkie style calls inside the four walls.

Optional Workforce Connect Push-to-Talk (PTT) Pro² Mobility DNA easy-to-deploy, cost-effective subscription-based software application that provides instant PTT walkie-talkie style calls inside and outside the four walls via an easy-to-deploy subscription service.

Optional Workforce Connect Voice³ turns TC26 devices inside your facility into fully-featured PBX handsets. Its customizable interface makes it easy to execute even the most complex telephony features — eliminating the need to purchase and manage additional voice-enabled devices.

GPS GPS with A-GPS: Glonass; BeiDou; Galileo

Wireless LAN

WLAN Radio

IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w; Wi-Fi™ certified; IPv4, IPv6, 1x1 MU-MIMO

Data Rates

2.4 GHz: 802.11b/g/n — 20MHz, 40MHz — up to 150 Mbps

5 GHz: 802.11a/g/n/ac – 20MHz, 40MHz, 80MHz – up to 433 Mbps

Operating Channels

Channel 1-13 (2412-2472 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13

Channel 36-165 (5180-5825MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165

Channel Bandwidth: 20, 40, 80 MHz

Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency

Security and Encryption WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA Enterprise 192-bit Mode (GCMP-256) - EAP-TLS; Enhanced Open (OWE)
Certifications 802.11a/b/g/n; WPA; WPA2; WPA3
Fast Roam PMKID caching; Cisco CCKM; 802.11r (Over-The-Air); OKC

Wireless PAN

Bluetooth

Bluetooth 5.0 BLE, Class 2

Environmental Compliance

• RoHS Directive 2011/65/EU; Amendment 2015/863
• REACH SVHC 1907/2006

For a complete list of product and materials compliance, please visit
www.zebra.com/environment

Warranty

Subject to the terms of Zebra’s hardware warranty statement, the TC26 CBRS model is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For the complete warranty statement, please visit
www.zebra.com/warranty

Recommended Services

Protect your TC26 CBRS mobile devices with Zebra OneCare™ SV, the right-priced service for Zebra’s right-priced mobile devices. You get two years of protection against failure, coverage for normal wear and tear, live and online technical support, priority repair turnaround time and free shipping, as well as cloud-based visibility into reports on your devices — including repairs, tech support cases, contracts, LifeGuard Analytics for Android security patch status, and more. For more information on recommended services, please visit Zebra OneCare Support Services,
www.zebra.com/us/en/services/zebra-onecare-support-services.html

Footnotes

1. Workforce Connect PTT Express is pre-loaded with a 90-day evaluation license. A full license must be purchased to continue use after 90 days evaluation.

2. To enable maximum performance and voice quality for Workforce Connect PTT Express, PTT Pro and other VoWiFi solutions, the Mobility DNA Enterprise License is recommended.

3. Mobility DNA Enterprise License is required to deploy Workforce Connect Voice and other 3rd party full duplex voice solutions for optimal performance and support.

Mobility DNA™ Professional Integrated Solutions

Mobility DNA™ is available on Android only. Mobility DNA Professional integrated solutions are preloaded and pre-licensed, provided at no cost. To take advantage of the complete Mobility DNA offerings for the TC26, a Mobility DNA Enterprise license is required. For more information about Mobility DNA tools, please visit the Mobility DNA Value Tier Kit home page,
www.zebra.com/us/en/cpn/mobility-dna-kit.html
TC26 CBRS Touch Computer Mobility DNA Icons: DataWedge, Device Diagnostics, EMDK, Enterprise Home Screen, Mx Mobility Extension, StageNow

Markets and Applications

Warehouse

Manufacturing

Ports and Yards

Stadiums

Parking Lots

Airports

Theme Parks



ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corp., registered in many jurisdictions worldwide. Android is a trademark of Google LLC. All other trademarks are the property of their respective owners. ©2021 Zebra Technologies Corp. and/or its affiliates.

Part number: SS-TC26-CBRS  03/19/2021 HTML
