ATR7000 RTLS Reader

Redefine operational efficiency with superior, affordable real-time locationing

What you can’t see will hurt your business — if you don’t know where your critical assets are located, you won’t be able to achieve maximum operational efficiency and workforce productivity. Introducing the ATR7000 — a new class of RFID reader offering advanced Zebra-only technology that provides visibility into the pinpoint location of all of your tagged assets. With the ATR7000, you can see where your inventory, forklifts, equipment, workers and more are located — and if they are on the move, in which direction they are moving. Now, you can identify, locate and track items in real time — and receive real-time alerts to improve compliance and loss prevention. With its simplified configuration and management interface, the ATR7000 couldn’t be easier to deploy. Multiple mounting and power options make installation a snap. Zebra software tools enable rapid development of your RFID applications — from a basic application at a single dock door to a complex application that covers every inch of the largest warehouse or manufacturing plant. And when it comes to total cost of ownership (TCO), the ATR7000 can’t be beat. Get the RTLS reader that offers superior technology, superior locationing accuracy, superior tag visibility and superior value — the ATR7000, only from Zebra.

ATR7000 RTLS Reader

Superior locationing for maximum asset visibility

Proprietary only-from-Zebra advanced RFID technology

The parallel multi-transmit and receive architecture, digital beam-forming and wide-angle array antenna combine to deliver unsurpassed location accuracy and coverage.

Wide-angle multi-polarized antenna

The wide angle covers up to double the area of typical competitive readers. And with dual circular and linear coverage patterns, you get maximum tag visibility in virtually any application, regardless of the environment size or complexity.

Beam steering for pinpoint location accuracy

The ATR7000 electronically steers and processes several hundreds of narrow flashlight-style beams simultaneously, providing highly-accurate pinpoint asset location typically better than 2 ft./0.6 meters.

Industry-best real-time tracking: location, movement and direction of movement

The ATR7000 gives you complete real-time visibility into the location of all of your tagged assets — regardless of whether they are stationary or on a forklift moving at peak speed. Since you can also see the direction of the movement, you get an extra layer of intelligence — for example, you can see whether items are moving into or out of a truck on the loading dock. And this powerful industrial reader delivers up to 10 times the throughput of competitive readers — so no matter how many assets you need to track, with the ATR7000, you can always track them all in real time.


Pave the way to frictionless time-saving workflows that drive process efficiency to a new high and transaction costs to a new low with the ATR7000.

For more information, visit www.zebra.com/atr7000

Simplified integration and deployment

Fast and easy integration with Zebra RFID API

Want to get your small deployment up and running, quickly and easily? With Zebra’s RFID Application Programming Interface (API), you can. The API simplifies the creation of RFID applications that can utilize real-time tag location data from the ATR7000, paving the way for dynamic time-saving workflows.

Get superior locationing with Zebra’s Configuration and Location Analytics Software (CLAS)

Want to empower your Warehouse Management System (WMS) with the real-time pinpoint location of all your tagged assets to enable the creation of dynamic workflows that maximize productivity? With CLAS, you can. This ready-to-use licensable software includes two key components: the RTLS software that enables configuration and remote management and monitoring of all your ATR7000 readers; and the Location Analytics engine. The Location Analytics engine automatically:

  • Collects the tag bearing data from all of your ATR7000 readers
  • Triangulates the tag data from multiple readers to calculate the real-time location of all tagged assets, typically within 2 ft./0.6 m accuracy
  • Streams the real-time location of your tagged assets into the business system of your choice — such as your Warehouse Management System (WMS).

Now, your WMS will know where all your assets are — stationary, on-the-move and in which direction they are moving. Armed with this new level of locationing intelligence, your WMS can automatically create and assign complex dynamic workflows that aggregate tasks along a single path. For example, a worker returning from completing a put-away order could complete a pick order on the return trip. Or one worker can complete multiple pick orders with items in the same vicinity on one trip through the warehouse.

The result? Minimum application coding. Maximum value out of your ATR7000 RFID solution. A faster return on investment through the elimination of about six to nine months of development time. Maximum operational efficiency. And maximum worker productivity.

Multiple mounting options

Mount the ATR7000 wherever you need it. The built-in pole mounting features make it easy to install overhead. And with the standard VESA mount, get additional versatile mounting options.

Flexible power options

Power it your way. Just plug in the +24 VDC power supply or utilize integrated support for 802.3at Power over Ethernet Plus (PoE+) to eliminate the need for an outlet and the time and cost to run a power drop.

Easy remote management of all your ATR7000 readers

Manage your entire ATR7000 solution with the integrated management interface. With this powerful management solution, you can automatically discover and configure ATR7000 readers that are connected to the local network — no hands-on required.


Unmatched value — without breaking the bank

Cut hardware costs in half with an unbeatable coverage zone

When it comes to cost, whether you choose to deploy the ATR7000 as a Real-Time Locationing System or a standard fixed reader at dock doors or other transition points, the ATR7000 can’t be beat. Its wide angle antennas cover up to double the area of competitive readers, effectively cutting the number and cost of required readers for your RTLS system in half. And you get the same cost-savings when you deploy the ATR7000 as a fixed reader at your dock doors, since its advanced features enable a single ATR7000 to cover two dock doors.

No-cost tag maintenance

When it comes to tag maintenance, you save even more. Passive UHF tags are not only very cost effective, they do not require a battery or battery management and maintenance — so unlike active tags, there’s no time or cost spent monitoring battery health and changing batteries to ensure seamless tag visibility. And since the average passive tag costs less than eight cents and lasts for years, it’s feasible to tag large volumes of inventory and assets — unlike other RTLS systems.

Maximize performance with Zebra Advanced Performance RFID tags — purposefully designed for the ATR7000

The right tags are key to maximizing the performance and benefits of your RFID system. That’s why Zebra developed its advanced performance RFID tags, designed specifically to provide the extended read range, orientation insensitivity and faster tag acquisition required to unlock the full potential of the ATR7000. The extended read range combines with the high sensitivity of the ATR7000 to ensure that even tags at the edge of the coverage zone are easily captured. The omni-directional tags are orientation insensitive, enabling flexible application of the labels on your assets — crucial for high read rates. The highly sensitive chip in the tag provides a faster response time to the reader, resulting in faster tag capture and increased throughput. And with wideband technology in the chip, there’s no performance degradation on challenging dense and heavy materials, such as wood, glass, water and paper.

ATR7000 Specifications

Physical Characteristics

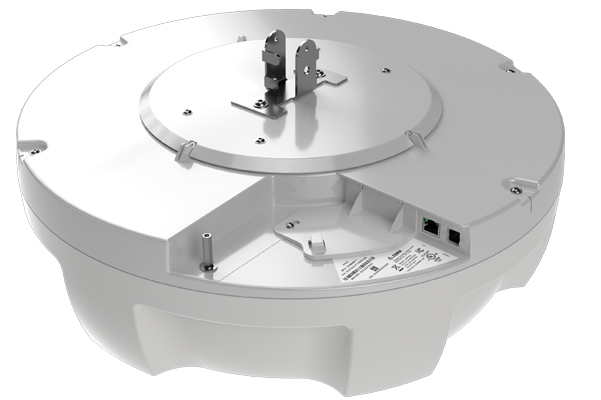

Dimensions Diameter 19.0 in. (482.6 mm) , height 6.34 in. (161 mm)
Weight 11.1 lbs ( 5.03 kg)
Visual Status Indicator Multi-Color LED (Power, Status)

RFID Characteristics

Antenna
Steerable phase-array
Air Interface Protocol
EPCglobal UHF RFID Class 1 Gen2/ISO 18000-63
Max Receive Sensitivity - 88 dBm
Beam Scanning Range Azimuth 0-360°, Elevation 0-60°
Frequency (UHF Band) 902-928 Mhz (US & Canada)

Connectivity

Network Connectivity
10/100 BaseT Ethernet (RJ45)
General Purpose I/O
Reserved, two (2) inputs, three (3) outputs (Opto-isolated)

Environmental Characteristics

Operating Temp
-4° F to +131° F / -20° C to +55° C
Storage Temp
-40° F to +158° F / -40° C to +70° C
Humidity 5-95% non-condensing
Sealing IEC IP51
ESD ± 15 KVdc air discharge; ± 8 KVdc direct/indirect discharge
Vibration MIL STD 810F, 0.04g2/Hz, Random (20 Hz to 2 kHz), 6G rms.

Management Interface

Operating System
Linux
Standard API Support Host Application .Net, C and Java EMDK
Management Protocols RM1.01 (with XML over HTTP/HTTPS and SNMP binding); RDMP specification in ISO 24791-3
Firmware Upgrade Web-based and remote firmware upgrade capabilities
Network Services DHCP, HTTPS, FTPS, SFTP, SCP, SSH, HTTP, FTP, SNMP and NTP
Network Stack IPv4, IPv6
Security Transport Layer Security Ver. 1.2, FIPS 140-2 Level 1
Host Interface Protocol LLRP v1.0.1

Mounting

Direct attach (pole mount) or VESA 75 or VESA 100

Power Sources

POE+ (802.3at) or AC-DC power supply rated for +24Vdc, 3.25 A

Power Consumption

Maximum power, 24 W; idle power < 4 W

Configuration and Location Analytics Software (CLAS) (Licensed)

RTLS Config Server software responsible for Initialization, management and monitoring
Location Analytics Estimates bearings of RFID tags using advanced parallel processing techniques, computes (triangulates) location estimates from tags observed from one or more readers, and publishes tag ID and location on a KAFKA interface.
Location Accuracy 2 ft./0.6 m, R50 4 ft./1.2 m, R95

Regulatory Compliance

Safety UL 60950-1; CSA C22.2 No. 60950-1
RF/EMI/EMC FCC Part 15, ICES-003 (Class B)

Product Warranty

Subject to the terms of Zebra Technology’s hardware warranty statement, the ATR7000 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit: http://www.zebra.com/warranty.

Recommended Services

Support services Zebra OneCare, On-site System Support
Advanced Services RFID Design and Deployment Services

Ideal for indoor RTLS applications in large and high volume areas:

Warehouses
Manufacturing plants
Other large facilities

ATR7000 Reader

  • Area monitoring
  • Overhead portal
  • Dock doors
  • Entry/exit areas

ATR7000 Readers and CLAS Software

  • Large area monitoring
  • Item location, transition and direction
  • Industrial automation
  • Asset tracking
