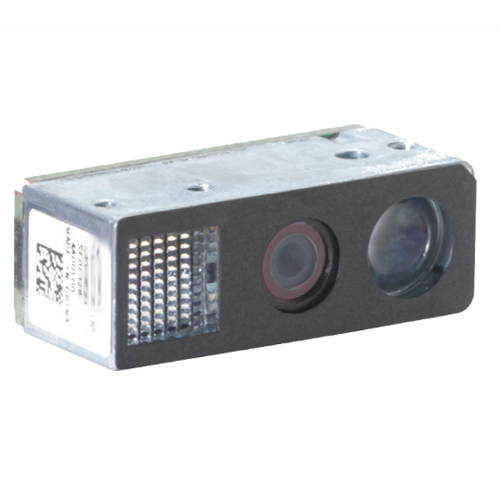

SE4710 BARCODE IMAGER
NEXT GENERATION INTELLIGENT IMAGING IN THE SMALLEST FOOTPRINT YET
EMPOWER YOUR SMALLEST DEVICES WITH NEXT GENERATION IMAGING PERFORMANCE. The SE4710 offers unparalleled 1D and 2D bar code capture in the tiniest package yet, allowing you to empower your slimmest and lightest devices with the split-second reliable bar code capture required in the most scan intensive tasks. At less than one fifth of an ounce (5 grams) and two thirds of the height and volume of the typical competitive engines, this tiny imager allows you to eliminate undesirable design constraints, such as the typical "scanner bump". The result? Your product designs can offer the sleek lines today's customers demand. And with our patented, proprietary PRZM (pronounced "prism") Intelligent Imaging technology, industry leading decoding algorithms and advanced focusing, optical and illumination systems, your customers can count on class-leading high-performance data capture they need to boost worker productivity and efficiency.
PRZM: A NEW APPROACH TO IMAGING FOR FASTER-THAN-EVER BAR CODE CAPTURE
While competitive systems rely on decode software to perform all image processing, PRZM changes the game by offloading a portion of that processing to the source of the image — the scan engine itself — reducing unnecessary delay and delivering a faster data capture experience. This unique approach helps businesses in just about any industry improve user productivity and business efficiency.
SUPPORT FOR THE NEXT GENERATION MIPI INTERFACE
Unlike its major competitors, the SE4710 supports the emerging MIPI interface as well as traditional parallel interfaces. Now, you can utilize the latest processors in your designs without sacrificing cost, integration time, or precious space for incremental hardware components. The result? Faster time to market and reduced costs.
SUPERIOR DECODE FLEXIBILITY
When you choose the SE4710, not only do you get the thinnest form factor, you also have the flexibility to choose the decoder strategy that best fits your product designs — software or hardware. Our software decode option allows you to further reduce space and system power requirements — ideal in the smallest of designs. Hardware options include two standalone circuit boards that connect to your board or a microchip that you can solder directly to your motherboard.
Features
Class-leading miniature, lightweight form factor
At less than a fifth of an ounce/5 grams and a third of an inch high/8.1 mm high, the SE4710 brings enterprise-class data capture to extremely slim devices — including smartphones and sleds.
Zebra-exclusive PRZM Intelligent Imaging technology
Offloads a portion of the processing from the decode software to the scan engine, reducing processing time and enabling faster data capture.
Support for MIPI and parallel interfaces
Reduces integration time and cost by eliminating components
Unparalleled bar code capture
Capture virtually any 1D or 2D bar code in milliseconds
Extraordinary working range
Capture bar codes from near contact to farther than 24 in./60 cm away
Wide field of view
Easy close-up reading of large bar codes as well as multiple bar codes
Omnidirectional scanning for unparalleled ease of use
No need to ever align the bar code and imager for highly intuitive and rapid bar code capture
Multiple decode options with the same great Zebra scanning performance
Increase design flexibility with your choice of two separate circuit boards or a microchip that can be mounted to the motherboard
Pick list mode
Small and sharp aiming dot enables users to easily select a single bar code to capture on a field of bar codes
LED aimer
Helps speed regulatory approval to help bring products to market
Extraordinary Working Range
The standard scanning range on the SE4710 is anything but standard. Users can capture data that is farther than 24 in./60 cm away — significantly farther than other products twice its size. And with a wide field of view, the SE4710 can easily capture larger bar codes.
EMPOWER YOUR SLIMMEST DESIGNS WITH POWERFUL NEXT GENERATION IMAGING.
FOR MORE INFORMATION, VISIT WWW.ZEBRA.COM/SE4710 OR ACCESS OUR CONTACT DIRECTORY AT WWW.ZEBRA.COM/CONTACT
SE4710 Specifications
PHYSICAL CHARACTERISTICS
Dimensions | 0.32 in. H x 0.88 in. W x 0.54 in. D |
Weight | 0.17 oz./4.8 grams |
Interface | Camera Port on 27 pin ZIF connector |
PERFORMANCE CHARACTERISTICS
Sensor Resolution | 1280 x 800 pixels |
Field of View | Horizontal: 42°, Vertical: 28° |
Skew, Pitch & Roll | Skew Tolerance: ±60° |
Focal Distance | From front of engine: 7.64 in. |
Aiming LED | 610nm LED |
Illumination | 1 Hyper Red 660nm LED |
USER ENVIRONMENT
Ambient Light | Max 107,639 lux (direct sunlight) |
Operating Temp. | -4° F to 122° F/ -20° C to 50° C |
Storage Temp. | -22° F to 158° F/-30° C to 70° C |
Humidity | Operating: 95% RH, non-condensing at 122° F /50° C |
Shock Rating | 2000 G ±5%, any mounting surface, at -22° F and 140° F/-30° C and 60° C for 0.85 ± ms; 2500 G ±5%, any mounting surface, at 73.4° F/23° C for 0.70 ±0.10 ms |
Power | Operational input voltage Engine: VCC= 3.3 +/-0.3V; VCC_ILLUM= 3.0 to 3.6V; VDD_IO_HOST= 1.7 to 3.6V Total Current Draw (VCC=VCC_ILLUM=VDD_IO_HOST=3.3V) with Illumination and aiming on, = 295mA pk, 230mA RMS Current draw in low power (hibernate mode) =400uA (standby mode) =1uA |
DECODE RANGES
4 mil Code 39 | 3.3 in./8.4 cm (Near) 8.8 in./22.4 cm (Far) |
5 mil Code 128 | 2.8 in./7.1 cm (Near) 8.2 in./20.8 cm (Far) |
5 mil Code 39 | 2.0 in./5.08 cm (Near) 13.5 in./34.3 cm (Far) |
5 mil PDF417 | 3.1 in./7.9 cm (Near) 8.4 in./21.3 cm (Far) |
10 mil DataMatrix | 2.9 in./7.4 cm (Near) 10.1 in./25.7 cm (Far) |
100% UPCA | 1.8* in./4.6* cm (Near) 26.0 in./66.0 cm (Far) |
20 mil Code 39 | 2.0* in./5.08* cm (Near) 30.0 in./76.2 cm (Far) |
* Field of View limited |
REGULATORY
Electrical Safety | Complies with IEC/EN 60950-1 + A1 and UL 60950-1 Second Edition and CSA C22.2 No. 60950-1-07, 2nd Edition 2011-12 |
LED Classification | Exempt Risk Group LED product per IEC/EN 62471 |
Environmental | RoHS Compliant |
WARRANTY
Subject to the terms of Zebra's hardware warranty statement, the SE4710 is warranted against defects in workmanship and materials for a period of 15 months from the date of shipment. For the complete Zebra hardware product warranty statement, go to: www.zebra.com/warranty |
Ideal For These Applications:
Industries
- Warehousing Management
- Retail
- Manufacturing
