LI4278 ハンドヘルドスキャナーサポート

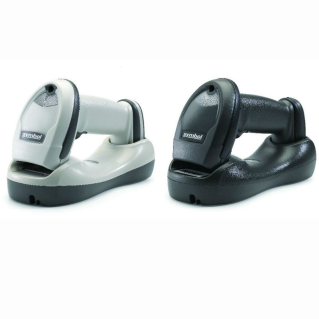

黒と白で示されるZebra LI4278イメージャー

ここでは、バーコードスキャナーのサポートと修復リソースを示します。

+はじめてのセットアップ / はじめに

The Setup guidelines below will take you to English documentation. You can access the localized User Guides in the MANUALS section.

次の機器が揃っているか確認してください。

  • LI4278 scanner
  • CR0078-S (Standard) or CR0078-P (Presentation) communication/charging cradle.
  • Power Supply (* if using the CR0078-P Presentation cradle)
  • Zebra製USBケーブル
  • (Other host interfaces setup are described in the LI4278 Handheld Scanner Product Reference Guide (for example,  Keyboard Wedge Interface)

First-Time Connection steps

1.    Connect the RJ41 end of the USB cable to the host port of the CR0078-S or CR0078-P cradle.

2.    Connect the USB end of the cable to your computer USB port.

3.    * If using the CR0078-P Presentation cradle, connect the power supply

4.    Confirm that a Green LED is present on the CR0078-S or CR0078-P cradle indicating power

5.    Pull the LI4278 trigger and confirm a scan beam is present.

Note: It is recommended to fully charge the LI4278 battery before first use

6.    Scan the Return To Factory Defaults  programming barcode from the LI4278 Quick Start Guide.

Note: When scanning a programming barcode from a screen/monitor, increase magnification to a minimum of 125%. This will ensure good barcode quality for a successful scan.

7.    To pair the digital scanner with the cradle, insert the digital scanner in the cradle or scan the pairing bar code. See Pairing Methods

* A high/low/high/low beep sequence indicates that the pairing bar code was decoded. When a connection between the cradle and digital scanner is established, a low/high beep sound.

8. バーコードの送信テストをする際は、Microsoft WordやNotepadなどのアプリケーションでテキストドキュメントを開いてください。

キーボードを使ってテキストドキュメントに入力できることを確認します。

製品のバーコードをスキャンします。

9. スキャンしたバーコードがテキストドキュメントに表示されます。

キーボードの言語(国コード)について

Windowsのキーボードが地域向けに設定されていて、英語のレイアウトでない場合、転送したバーコードのデータが正しく表示されないことがあります。

Windowsが使用している言語を特定し、互換性のあるキーボード言語設定バーコード(国コード)をスキャンしてください USB国別キーボードタイプ(国コード)

Consult the LI4278 Product Reference Guide (or available language copy) for additional scanner setup information.

+ ドライバ

  • USB CDC ドライバのサポート

    このドライバは、Windows PCのUSBポートを使って仮想RS232通信ポートをエミュレートする際に使用します。

  • JPOS ドライバー

    JPOS(Java for Point of Sale)はPOSソフトウェアのインターフェイスの標準となるもので、Javaで記述され、Zebraハードウェアと共にPOSシステムを作成します。

  • OPOS ドライバー

    このドライバは、あらゆるスキャナとOPOS準拠のPOSアプリケーションとの間のバーコードデータ通信を可能にします。

  • Windows 管理インストルメンテーション ドライバー

    このドライバは、スキャナのローカル管理とネットワークリモート管理を可能にします。

+ マニュアル

+ ユーティリティ

+開発者向けツール

  • Windows 用スキャナー SDK

    Windows用のスキャナソフトウェア デベロッパーキット(SDK)には、C++ とC#、OPOS、JPOSWindows管理インストルメンテーション(WMI)ドライバ、テストユーティリティのサンプルアプリケーションが含まれています。

+ トラブルシューティング

Top 5 LI4278 Knowledge Articles
