SR5502 Backroom and Warehouse RFID Antenna

Track Inventory in the Backroom from Arrival to Departure

Detect and record the movement of RFID-tagged inventory from the moment it enters your backroom or warehouse to the moment it leaves with the Zebra SR5502 Backroom/Warehouse Antenna.

How-to-Videos, Manuals and Drivers

Learn More About SR5502 RFID Reader Antenna

  • Ready-to-Use All-in-One Integrated Antenna

    Everything you need is already integrated inside the housing, pre-configured and ready to go. Just mount on the ceiling or on a wall for fast and easy deployment.

  • Mix-and-Match Antenna Combinations

    Zebra’s advanced pre-engineered ready-to-use RFID antenna is designed to meet specific needs in challenging areas — such as backrooms and warehouse aisles where metal, fluorescent lights and more can create interference to aisles and will-call areas that require merchandise visibility.

  • Plug-and-Play Simple Deployment

    Deployment couldn’t be easier. All solutions in this family offer everything you need, including a pre-configured antenna, plus RF cable and mounting brackets. Just mount the hardware in the appropriate area, plug it in to your RFID reader and you’re ready to start capturing information about your inventory.

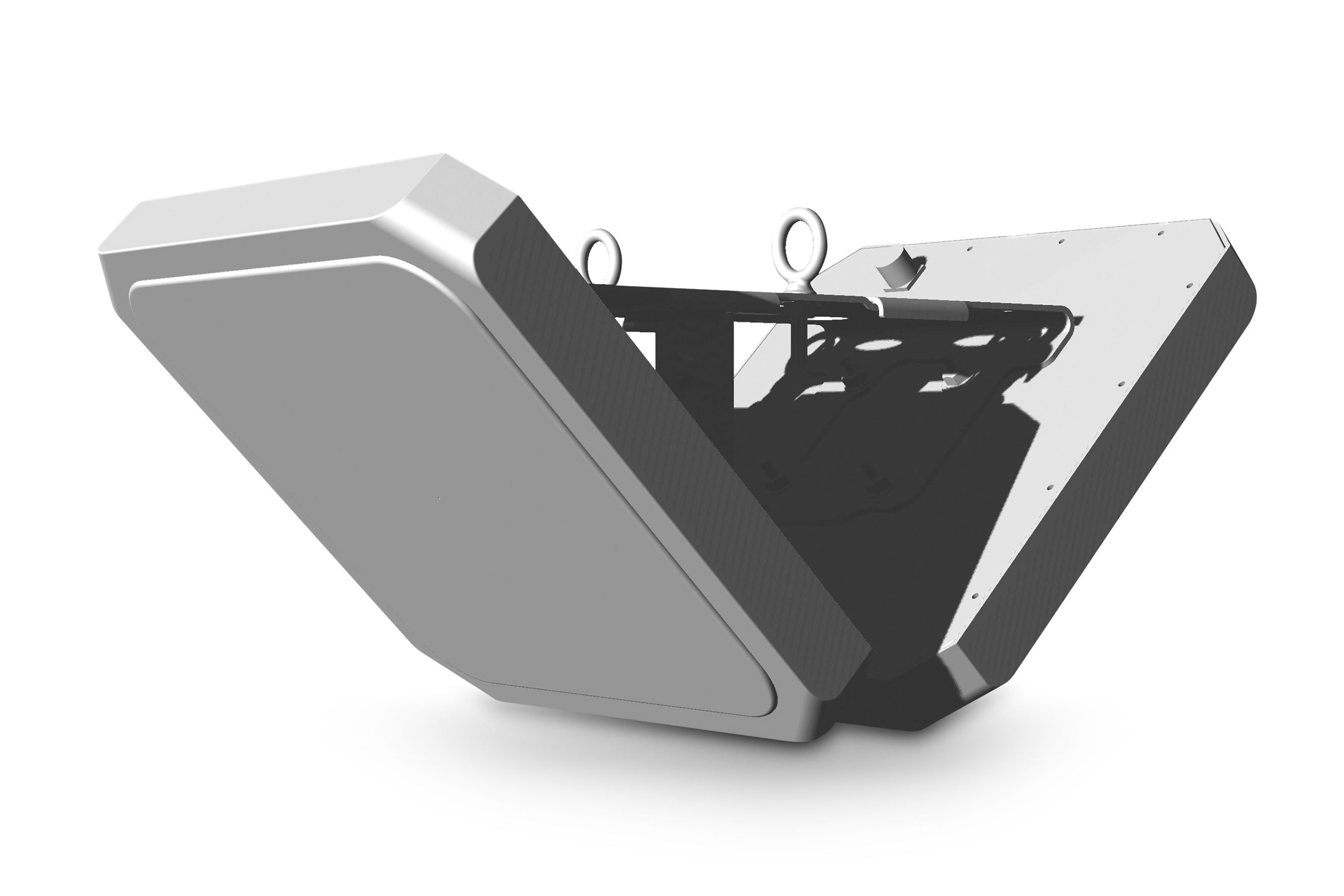

SR5502 RFID Reader Antenna

SR5502 Backroom & Warehouse RFID Antenna

Track Backroom Inventory

This RFID antenna starts the tracking cycle by detecting and recording the movement of RFID-tagged inventory from the moment it enters your backroom to the moment it leaves. Handle high tag volumes with increased accuracy and read rates. Installation is simple – just mount the supplied bracket and insert the Backroom SmartLens Sensor. And Power-over-Ethernet (PoE) eliminates the need to install power outlets — ideal for typical complex backroom environments. And deployment is simple — just turn on the device and you’re up and running.

  • Dimensions

    17.0in. x 10.2in. x 7.0in.
    432mm x 260mm x 178mm



  • Humidity

    95% RH non-condensing

  • Weight

    5.5 lbs./2.5 kg

  • Electrostatic Discharge

    ± 15 kV air discharge; ± 8 kV direct discharge; ± 8 kV indirect discharge

  • Operating Temperature

    -4º to 131º F/-20º to 55º C

  • Input Power

    18W max (37-55 VDC POE)

  • Storage Temperature

    -40º to 158º F/-40º to 70º C
