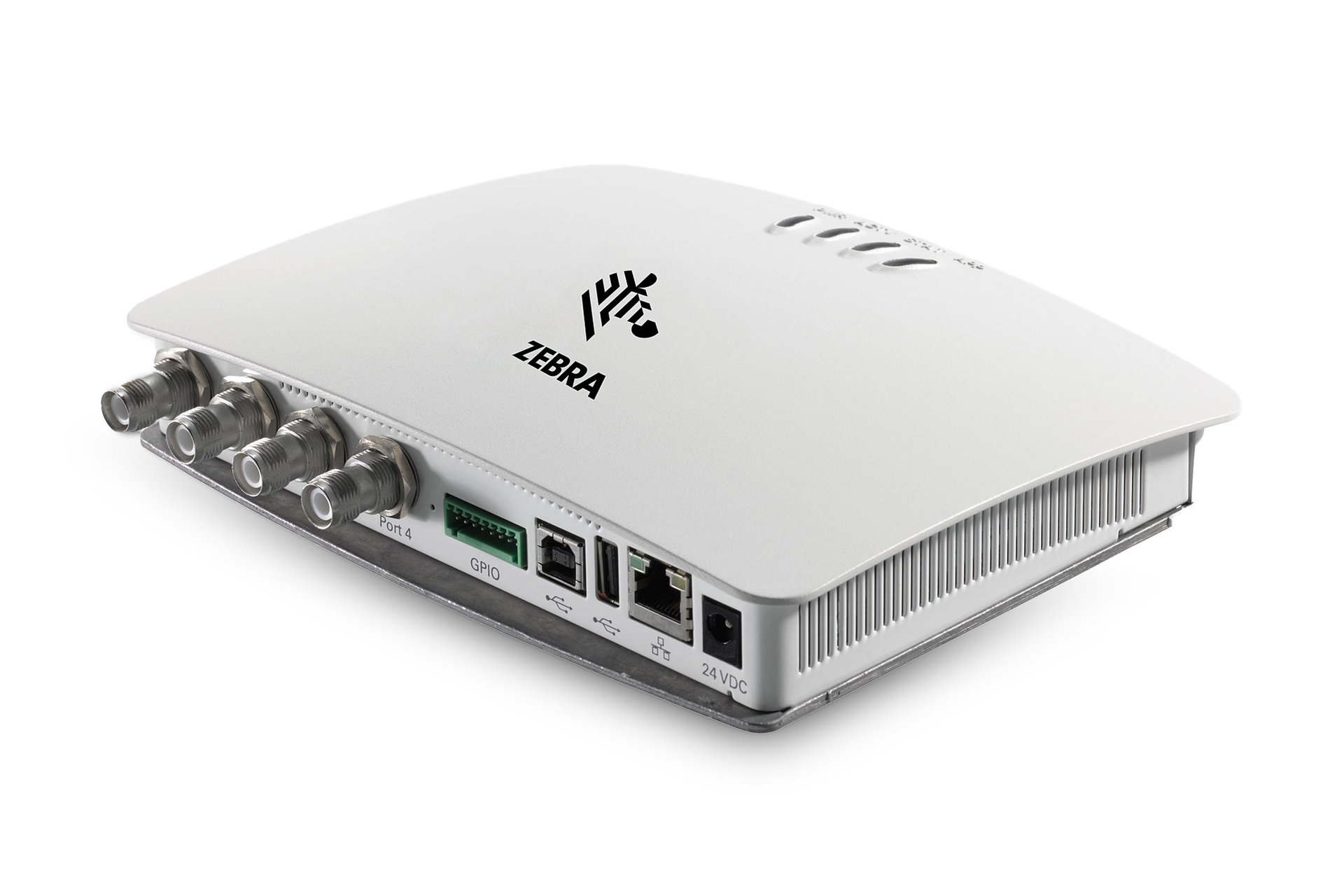

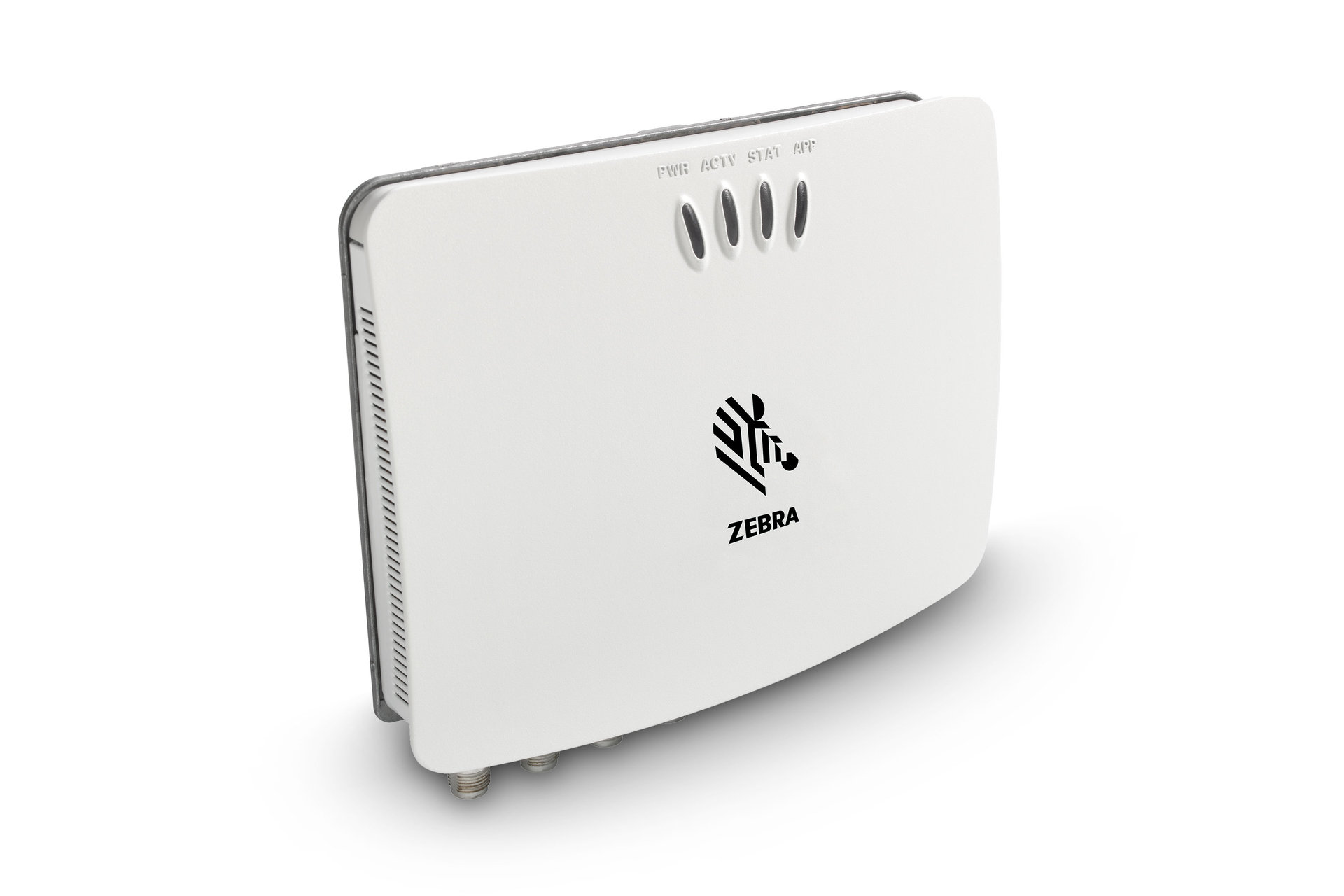

FX7500 Fixed RFID Reader

The new FX7500 Fixed RFID Reader introduces advanced RFID radio technology for faster, more accurate read rates and more consistent performance even in challenging environments. The new radio is paired with a more flexible Linux-based network architecture that integrates the tools and open-standard interfaces needed for fast, easy deployment with RFID and back-end applications. The result is a fixed RFID reader that sets a new performance standard — delivering peak performance at all times with excellent reader sensitivity and better interference rejection, at a lower cost per read point.


The FX7500 comes in a sleek, attractive form factor with a low profile and compact footprint, at home in nearly any business environment. It also looks good on the balance sheet, with an impressive array of integrated features and functionality that pack value for your business class applications.

All-new high performance radio technology
Higher sensitivity, improved interference rejection and echo cancellation means you get the best-in-class dense reader mode performance, up to 1200 tags/sec in FM0 mode.

Integrated Power Over Ethernet (POE), optically isolated GPIO, USB Client and Host ports with Wi-Fi and Bluetooth connectivity via USB
All the tools you need for fast, easy deployment and simplified ongoing management of your RFID applications are built right into the FX7500 architecture.

2-port and 4-port reader configurations
More configuration options mean more flexibility to optimize your read field. Deploy precisely the number of read points you need for proper coverage, no more, no less, and reduce your TCO.

Plenum Area Rated
The FX7500 is approved and suitable for environmental air handling space installation, so it can operate effectively within walls and ceilings.

Support for worldwide standards (FCC, ETSI EN 302 208) in either 4-port and 2-port mono-static antenna configurations

  • EPC standards-based defined reader management
  • Auto-discovery
  • Flexible firmware upgrade features

Seamlessly integrates with existing IT environments; enables remote and centralized management; simplifies and reduces the cost of set-up, deployment, testing and management

Next generation reader platform, including dense reader mode support
Best-in-class read rates deliver superior read performance

Linux: 512 MB Flash/256 MB RAM
Integration of a wide range of third-party applications for fast application deployment; supports upgrading to meet future requirements; maximizes product lifespan; provides outstanding security and investment protection

EPC Global LLRP and RM interface support; comprehensive API support —  .NET, C and Java
Simplifies application development

Specification Sheet

FX7500 Specification Sheet


Connectivity

Network connectivity
10/100 BaseT Ethernet – RJ45 with POE support

External interfaces
USB Host – USB Type A, USB Client – USB Type B

Read points
FX 7500-2: 2 mono-static ports

(Reverse Polarity TNC)
FX 7500-4: 4 mono-static ports

(Reverse Polarity TNC)
Power supply

POE, POE+ or +24V DC (UL Approved)
12V-48VDC operation can be supported

OS and Firmware Management

Memory
Flash 512 MB; DRAM 256 MB

Firmware upgrade
Web-based and remote firmware upgrade capabilities

Management protocols
RM 1.0.1 (with XML over HTTP/HTTPS and SNMP binding); RDMP

Physical Characteristics

Dimensions (HxWxD)
7.7 in. L x 5.9 in. W x 1.7 in. D (19.56 cm L x 14.99 cm W x 4.32 cm D)

Weight
1.9 lbs ± 0.1 lbs (0.86 kg ± 0.05 kg)

Base material
Die-cast aluminum, sheet metal and plastic

Visual status indicators
LEDs for power (green), activity (yellow) and error (red)

Regulatory Specifications

EMC
EN 301 489-1, EN 301 489-3, FCC Part 15 Class B, ICES 003 Class B

Radio
EN 302 208

Human exposure EMF
RSS210

User Environment

Operating temperature
-4° to +131° F/-20° to +55° C

Storage temperature
-40° to +158° F/-40° to +70° C

Humidity
5-95% non-condensing

Vibration
MIL- STD-810G
