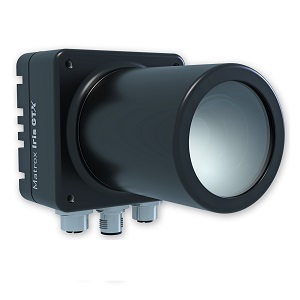

Zebra Iris GTX Support

Iris GTX

Here are support and repair resources for your Smart Sensor/Camera.

+ Documentation

  • Zebra Breakout Box Installation and Technical Reference

    11535-101-0100

    Download 1 MB
  • Zebra Iris GTX and Zebra I/O Breakout Box Regulatory Guide

    Y11537-K01-0100

    Download 1 MB
  • Zebra Iris GTX Installation and Hardware Reference

    11537-101-0101

    Download 2 MB

+ Configuration File

  • gsdml-v2.35-matrox_electronic_systems_ltd-irisgtx-20210713.zip

    Iris GTX PROFINET configuration file

      Download 4 KB

+ 3D and 2D Drawings Download

Versions



+

3D - .STP Model Download

Release Date:

September 2023

  • - IrisGTX

Software

Iris-GTX-3D.zip

Iris GTX .STEP model file

 Download 31 MB

+

2D - Model Download

Release Date:

September 2023

  • - IrisGTX

Documentation

Iris-GTX-2D.PDF Download 462 KB

+ Specifications, Characteristics and More

Specifications Sheet

+ Accessories

Third-party Accessories for Iris GTX

Supplier Description
Optics
Corning Varioptic C-Series C-39N0-160-I2C: Variable focus 16 mm effective focal length (EFL) liquid lens with I2C control

Corning Varioptic

C-Series C-390N0-250-I2C: Variable focus 25 mm EFL liquid lens with I2C control
Illumination
Advanced illumination ICS 3 Inline Control System: Continuous and strobe mode inline controller
Buechner Rondo-LX IP67: Ring light with mechanical adapter
Smart Vision Lights EZ Mount Ring Light: Ring light with built-in driver
Smart Vision Lights Mini Ring Light: Ring light with built-in driver
Cables
Components Express MI-1-X-L0-XXM: M12 X-Code Gigabit Ethernet cable, straight
Components Express MI-1-X-L2-XXM: M12 X-Code Gigabit Ethernet cable, right angle
Components Express MI-K0-X-L0-XXM: M12 X-Code to industrial Ethernet cable
Components Express GTR-VGA-USB: VGA/USB I/O breakout cable (contact CEI for application and configuration details)
Components Express GTR-LTYCBL: Light breakout cable (contact CEI for application and configuration details)
Components Express GTR-YCBL: Power breakout cable for camera and light (contact CEI for application and configuration details)
Phoenix Contact

SAC-12P-MS/5,0-PVC SCO: 5 m cable to connect power, discrete I/Os, and LED lighting intensity control. M12 to open end

Phoenix Contact SAC-12P-MS/10,0-PVC SCO: 10 m cable to connect power, discrete I/Os, and LED lighting intensity control. M12 to open end
Phoenix Contact NBC-MSX/2,0-94F/R4AC SCO: 2 m Ethernet cable. M12 to RJ45 connector
Phoenix Contact NBC-MSX/10,0-94F/R4AC SCO: 10 m Ethernet cable. M12 to RJ45 connector
Light Brackets
Components Express E-GTR-LB: Iris GTR flip-light bracket with light plate
Components Express EN-SL-A: Swivel link mount adapter, fits SLM-1 and ASFB-1
Lens Covers
Components Express EN-DC55-xx: 55 mm O.D., clear LP286 filter available in either 30 mm, 40 mm, 50 mm, 60 mm, 70 mm, 75 mm, 80 mm, 90 mm, or 100 mm lengths
Components Express EN-DC55-55x: 55 mm O.D., LP286 filter of 55 mm length available in either clear, red, blue, orange, VIS Bandpass/UV/NIR Block, and Near IR Bandpass formats
Components Express EN-DC55-25-XR: Lens cover extension ring
Components Express GMLC-75-PW: Disposable protective window for EN-DC55 lens covers
