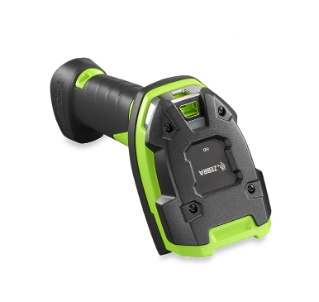

DS3608-SR/DS3678-SR Ultra-Rugged Scanner Support
The Zebra DS3608-SR/DS3678 scanners are part of the DS3600 Series Scanner family.
Here are support and repair resources for your Barcode Scanner.
+ First Time Setup / Getting Started
The Setup guidelines below will take you to English documentation. You can access the localized User Guides in the MANUALS section.
Confirm that you have the following equipment.
- DS3608-SR scanner
- Zebra proprietary USB cable
- Other host interfaces setup are described in the DS3608-SR Product Reference Guide (for example, Keyboard Wedge Interface)
First Time Connection steps
1. Connect the RJ41 end of the USB cable to the handle of the DS3608-SR scanner.
2. Connect the USB end of the cable to your computer USB port.
3. The DS3608-SR will power up with low, medium, high beeps
4. Pull the DS3608-SR trigger and confirm a scan beam is present.
5. Scan Return To Factory Defaults programming barcode from the DS3608 Quick Start Guide.
Note: When scanning a programming barcode from a screen/monitor, increase magnification to a minimum of 125%. This will ensure good barcode quality for a successful scan.
6. To test sending a barcode, open a text document in an application such as Microsoft Word or Notepad.
Ensure that you can type into the text document using your keyboard.
Scan a product barcode.
7. The scanned barcode will be displayed in the text document.
Keyboard Language (Country Code) Information
If Windows is configured for a region’s local keyboard and does not use an English keyboard layout, transferred barcode data may appear inaccurate.
Identify the language Windows uses and scan a compatible keyboard language configuration barcode (country code) USB Country Keyboard Types (Country Codes)
Consult the DS3608 Digital Scanner Product Reference Guide (or available language copy) for additional scanner setup information.
+ Drivers
-
USB CDC Driver Support
The driver is used to emulate a virtual RS232 Communication port using a USB port on a Windows PC.
-
JPOS Driver
(Java for Point of Sale) is a standard for interfacing POS software, written in Java, with Zebra hardware used to create a point-of-sale system.
-
OPOS Driver
The driver enables bar code data communication between any scanner and an OPOS-compliant POS application.
-
Windows Management Instrumentation Driver
The driver enables local and network remote management of a scanner.
+ Manuals
-
DS36X8 Product Reference Guide (EN)
MN-002689-16EN Rev. A
Download 21 MB -
Cordless SSI Programmer’s Guide
MN001667A02EN Rev. A
Download 1 MB -
DS3608 Quick Start Guide
MN002257A02 Rev. A
Download 8 MB -
DS3678 Quick Start Guide (en)
MN002648A03EN Rev. A
Download 3 MB -
EA3600 Network Connect for Automation Industrial Ethernet Adapter (en)
MN-003001-05 Rev. A
Download 5 MB -
FLB3678 Quick Reference Guide (en)
MN002336A03 Rev. A
Download 1 MB -
Forklift Mounting Plate Template English
MN-002769-01, rev. A
Download 965 KB -
Multicode Data Formatting and Preferred Symbol User Guide
MN-002895-02 Rev. A
Download 3 MB -
SAC3600-4001CR Four Slot Spare Battery Charger Quick Reference Guide (en)
MN002652A03 Rev. A
Download 1 MB -
Simple Serial Interface Programmer’s Guide (en)
72E-40451-04EN Rev. A
Download 1 MB -
STB3678 Industrial Scanner Cradle Quick Reference Guide (en)
MN-002334-05EN Rev. A
Download 1 MB -
Zebra Scanner SDK for Android Developer Guide (en)
This SDK enables developers to create Android app that fully control a Zebra scanner with both a cabled and Bluetooth connection.
Download 2 MB -
Advanced Data Formatting Programmer Guide
Programing barcodes and instructions for customizing scanned data.
Download 1 MB
+ Videos
+ Utilities
-
123Scan Utility Support
Zebra scanner configuration utility.
-
Advanced Data Formatting Support
ADF enables the scanner to modify the data before transmission to a host. It is programmed using 123Scan.
-
Zebra Evolution Update
Subscribe to this quarterly email. It lists the latest updates to your scanner’s firmware and Zebra software tools.
-
Scan-To-Connect Utility for Windows
Enables a Zebra Bluetooth scanner to pair with a PC in one simple step.
-
Scanner Update Utility For Windows 10 (32 and 64bit)
A basic firmware and configuration update tool for use in stores, hospitals, warehousing environments. Use of this tool requires staging by an IT department.
-
Scanner Control App
This demo app enables Zebra cordless scanners to be connected and controlled by a tablet or a smartphone.
-
Scanner Management Service for Windows
Allows remote management of Zebra scanners from your PC with a Windows OS.
-
Scan-To-Connect Utility for Android
Enables a Zebra Bluetooth scanner to pair with a phone, or tablet in one simple step.
+ Developer Tools
-
Scanner SDK for Windows
Scanner Software Developers Kit (SDK) for Windows includes Sample applications for C++ and C#, OPOS, JPOS, and Windows Management Instrumentation (WMI) drivers and test utilities.
-
Scanner SDK for Android
Scanner Software Developers Kit (SDK) for Android enables the development of custom scanner control apps for Zebra scanners.
-
Scanner SDK for Linux
Scanner Software Developers Kit (SDK) for Linux includes the JPOS driver, Development libraries and header files for application developers, and Test and Sample utilities.
-
EA3600 Industrial Ethernet Software for Windows
-
Scanner SDK for iOS
Scanner Software Developers Kit (SDK) for iOS enables MFi or Bluetooth Low Energy (BLE) cordless scanners to be connected and controlled by an iPad, iPhone, or iPod Touch without using a cradle.
