SN5604 Sensing Retail Appliance

Zebra SmartLens Gen II for Retail Sensors

Zebra SmartLens for Retail is a multi-faceted solution that provides retailers with the ability to sense, analyze and take the right real-time actions to increase sales, enable successful omnichannel operations and reduce shrink and operational costs. The foundation of this ground-breaking solution is the family of sensors that automatically sense and record the location and movement of merchandise and assets throughout the retail store. These overhead RFID sensors are designed for different areas of your store, including the backroom, exit/entry points, the sales floor and Point of Sale (POS).

Learn More About SNAP SmartLens Sensor

  • Ready-to-Use All-in-One Integrated Antenna

    Everything you need is already integrated inside the housing, pre-configured and ready to go. Just mount on the ceiling or on a wall for fast and easy deployment.

  • Mix-and-Match Antenna Combinations

    Zebra’s advanced pre-engineered ready-to-use RFID antenna is designed to meet specific needs in challenging areas — such as backrooms and warehouse aisles where metal, fluorescent lights and more can create interference to aisles and will-call areas that require merchandise visibility.

  • Plug-and-Play Simple Deployment

    Deployment couldn’t be easier. All solutions in this family offer everything you need, including a pre-configured antenna, plus RF cable and mounting brackets. Just mount the hardware in the appropriate area, plug it into your RFID reader and you’re ready to start capturing information about your inventory.

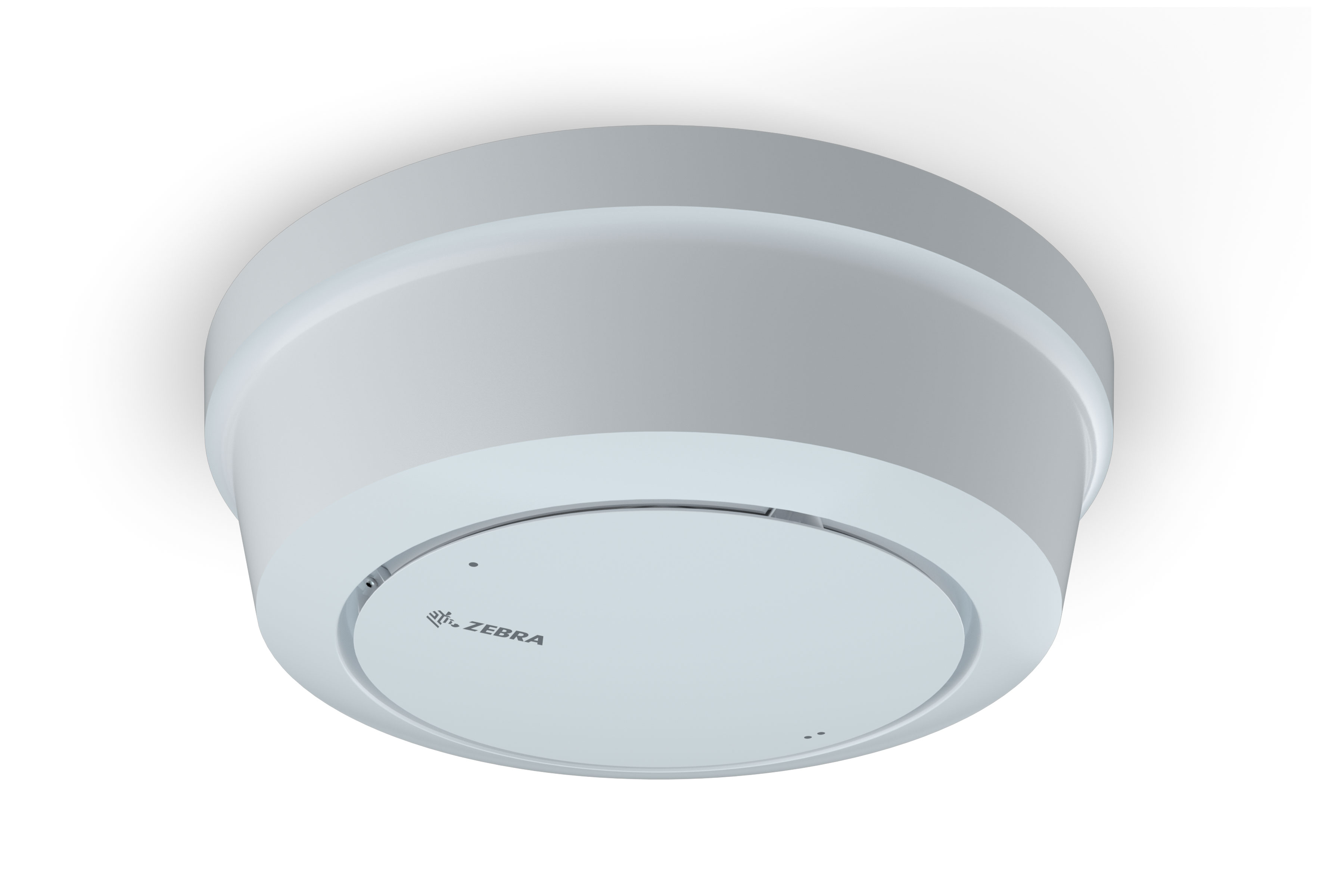

Sensing Network Appliance (SNAP) SmartLens Sensor

Sensing Network Appliance (SNAP) SmartLens Sensor

Track Inventory and Mobile Devices

The SNAP SmartLens Sensor is loaded with the technology you need to obtain unprecedented real-time visibility into what is happening on your sales floor. Track the movement of items with the integrated high-performance RFID reader.

  • Dimensions

    12 in. x 12 in. x 4 in./305 mm x 305 mm x 102 mm

  • Weight

    10.5 lbs/4.8 kg

  • RFID Reader

    Frequency: Global Reader: 902 MHz – 928 MHz (North America); 865 MHz –868 MHz (EU), US (only) Reader: 902 MHz-928 MHz

    Radiated Power: Up to 4W EIRP

    Security: Transport Layer Security Ver 1.2, FIPS-140
