LI3608-SR/LI3678-SR Ultra-Rugged Scanner Support

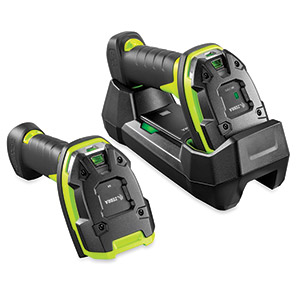

Zebra LI3678 ultra-rugged scanner, shown in and out of cradle

Here are support and repair resources for your Barcode Scanner.

+ First Time Setup / Getting Started

The Setup guidelines below will take you to English documentation. You can access the localized User Guides in the MANUALS section.

Confirm that you have the following equipment.

LI3608-SR scanner and
Zebra proprietary USB cable
(Other host interfaces setup are described in the LI3608-SR Ultra-Rugged Scanner Product Reference Guide (for example, Keyboard Wedge Interface)

First Time Connection steps

1. Connect the RJ41 end of the USB cable to the handle of the LI3608-SR scanner.

2. Connect the USB end of the cable to your computer USB port.

3. The LI3608-SR will power up with Low/medium/high beeps

4. Pull the LI3608-SR trigger and confirm a scan beam is present.

5. Scan Return To Factory Defaults programming barcode from the LI3608-SR Quick Start Guide.

Note: When scanning a programming barcode from a screen/monitor, increase magnification to a minimum of 125%. This will ensure good barcode quality for a successful scan.

6. To test sending a barcode, open a text document in an application such as Microsoft Word or Notepad.

Ensure that you can type into the text document using your keyboard.

Scan a product barcode.

7. The scanned barcode will be displayed in the text document.

Keyboard Language (Country Code) Information

If Windows is configured for a region’s local keyboard and does not use an English keyboard layout, transferred barcode data may appear inaccurate.

Identify the language Windows uses and scan a compatible keyboard language configuration barcode (country code) USB Country Keyboard Types (Country Codes)

Consult the LI36x8 Linear Scanner Product Reference guide (or available language copy) for additional scanner setup information.

The Setup guidelines below will take you to English documentation. You can access the localized User Guides in the MANUALS section.

Confirm that you have the following equipment.

LI3678-SR scanner
STB3678 communication/charging cradle
Zebra proprietary USB cable
(Other host interfaces setup are described in the LI3678-SR Ultra-Rugged Scanner Product Reference Guide (for example, Keyboard Wedge Interface)

First Time Connection/Communication steps

1. Connect the RJ41 end of the USB cable to the host port of the STB3678 cradle.

2. Connect the USB end of the cable to your computer USB port.

3. Confirm that a Green LED is present on the STB3678 cradle indicating power

4. Pull the LI3678-SR trigger and confirm a scan beam is present.

Note: It is recommended to fully charge the LI3678-SR battery before first use

5. Scan the Return To Factory Defaults programming barcode from the LI3678 Quick Start Guide.

Note: When scanning a programming barcode from a screen/monitor, increase magnification to a minimum of 125%. This will ensure good barcode quality for a successful scan.

6. To pair the digital scanner with the cradle, insert the digital scanner in the cradle or scan the pairing bar code Pairing Methods .

7. * A high/low/high/low beep sequence indicates that the pairing bar code was decoded. When a connection between the cradle and digital scanner is established, a low/high beep sound.

8. To test sending a barcode, open a text document in an application such as Microsoft Word or Notepad.

Ensure that you can type into the text document using your keyboard.

Scan a product barcode.

9. The scanned barcode will be displayed in the text document.

Keyboard Language (Country Code) Information

If Windows is configured for a region’s local keyboard and does not use an English keyboard layout, transferred barcode data may appear inaccurate.

Identify the language Windows uses and scan a compatible keyboard language configuration barcode (country code) USB Country Keyboard Types (Country Codes)

Consult theLI36x8 Linear Scanner Product Reference guide (or available language copy) for additional scanner setup information.

+ Drivers

USB CDC Driver Support

The driver is used to emulate a virtual RS232 Communication port using a USB port on a Windows PC.
JPOS Driver

(Java for Point of Sale) is a standard for interfacing POS software, written in Java, with Zebra hardware used to create a point-of-sale system.
OPOS Driver

The driver enables bar code data communication between any scanner and an OPOS-compliant POS application.
Windows Management Instrumentation Driver

The driver enables local and network remote management of a scanner.

+ Manuals

LI36X8 Linear Scanner Product Reference Guide

MN001740A06EN Rev. A
Download 6 MB
FLB3678 Quick Reference Guide (de)

MN002336A03DE Rev. A
Download 1 MB
LADESTATION STB3678 Quick Reference Guide (de)

MN-002334-05DE Rev. A
Download 2 MB
LI3608 Linearer Imager Scanner Kurzübersicht (de)

MN002166A03DE Rev. A
Download 2 MB
LI3678 Linearer Imager-Scanner Quick Start Guide (de)

MN-002323-04DEa Rev. A
Download 3 MB
SAC3600-4001CR Vierfachladegerät für Ersatzakku Kurzreferenz (de)

MN002652A04DE Rev. A
Download 1 MB
Cordless SSI Programmer’s Guide

MN001667A02EN Rev. A
Download 1 MB
FLB3678 Quick Reference Guide (en)

MN002336A03 Rev. A
Download 1 MB
Forklift Mounting Plate Template English

MN-002769-01, rev. A
Download 965 KB
LI3608 Linear Imager Scanner Quick Start Guide (en)

MN002166A03EN Rev. A
Download 2 MB
LI3678 Linear Imager Scanner Quick Start Guide (en)

MN002323A04EN Rev. A
Download 3 MB
SAC3600-4001CR Four Slot Spare Battery Charger Quick Reference Guide (en)

MN002652A03 Rev. A
Download 1 MB
Simple Serial Interface Programmer’s Guide (en)

72E-40451-04EN Rev. A
Download 1 MB
STB3678 Industrial Scanner Cradle Quick Reference Guide (en)

MN-002334-05EN Rev. A
Download 1 MB
BASE STB3678 Guía de referencia rápida (es)

MN-002334-05ESLA Rev, A
Download 1 MB
BASE STB3678 Guía de referencia rápida (es)

MN002334A03ES Rev, A
Download 1 MB
LI3608 Lector de imágenes lineal Guía rápida de inicio (es)

MN002166A03ES Rev. A
Download 2 MB
LI3678 Lector de imágenes lineal Guía rápida de inicio (es)

MN-002323-04ES Rev. A
Download 3 MB
FLB3678 Quick Reference Guide (es)

MN002336A03ES Rev. A
Download 1 MB
FLB3678 Quick Reference Guide (fr)

MN002336A03FR Rev. A
Download 1 MB
LI3608 Lecteur imageur linéaire Guide de démarrage rapide (fr)

MN002166A03FR Rev. A
Download 2 MB
LI3678 Lecteur imageur linéaire Guide de démarrage rapide (fr)

MN-002323-04FR Rev. A
Download 3 MB
SAC3600-4001CR Chargeur de batterie de rechange à quatre positions Guide de référence rapide (fr)

MN002652A04FR Rév. A
Download 1 MB
STB3678 Quick Reference Guide (fr)

MN-002334-05FR Rev, A
Download 1 MB
FLB3678 Quick Reference Guide (hr)

MN002336A03CR Rev. A
Download 1 MB
LI3608 Čitač linearnog koda Osnovne upute (hr)

MN002166A03HR Rev. A
Download 2 MB
SAC3600-4001CR Cargador de batería de repuesto de cuatro ranuras Guía de referencia rápida (es-LA)

MN002652A04ESLA Rev. A
Download 1 MB
SAC3600-4001CR Punjač za rezervnu bateriju s četiri ležišta Kratke referentne upute (hr)

MN002652A04HR prerađeno izdanje A
Download 1 MB
STB3678 Quick Reference Guide (hr)

MN-002334-05HR Rev, A
Download 1 MB
BASE STB3678 Guida rapida di riferimento (it)

MN-002334-05IT Rev. A
Download 1 MB
BASE STB3678 Guida rapida di riferimento (it)

MN002334A03IT Rev. A
Download 1 MB
FLB3678 Quick Reference Guide (it)

MN002336A03IT Rev. A
Download 1 MB
LI3608 Scanner basato su imager lineare Guida rapida (it)

MN002166A03IT Rev. A
Download 2 MB
LI3678 Scanner basato su imager lineare Quick Start Guide (it)

MN-002323-04IT Rev. A
Download 3 MB
SAC3600-4001CR Caricabatteria di ricambio a quattro slot Guida rapida di riferimento (it)

MN002652A04IT Rev. A
Download 1 MB
FLB3678 Quick Reference Guide (ja)

MN002336A03JA Rev. A
Download 1 MB
LI3608 リニアイメージャースキャナクイックスタートガイド (ja)

MN002166A03JA Rev. A
Download 2 MB
LI3678 リニアイメージャスキャナクイックスタートガイド (ja)

MN-002323-04JA Rev. A
Download 3 MB
LI36X8 リニアスキャナプロダクトリファレンスガイド (ja)

MN001740A03JA 改訂版 A
Download 13 MB
LI36X8 リニアスキャナプロダクトリファレンスガイド (ja)

MN001740A04JA 改訂版 A
Download 13 MB
SAC3600-4001CR 4 スロット予備バッテリ充電器クイックリファレンスガイド (ja)

MN002652A04JA 改訂版 A
Download 1 MB
STB3678 Quick Reference Guide (ja)

MN-002334-05JA Rev. A
Download 3 MB
FLB3678 Quick Reference Guide (ko)

MN002336A03KO Rev. A
Download 1 MB
LI3608 선형 이미저 스캐너 빠른 시작 설명서 (ko)

MN002166A03KO Rev. A
Download 2 MB
LI3678 선형 이미저 스캐너 빠른 시작 설명서 (ko)

MN-002323-04KO Rev. A
Download 3 MB
SAC3600-4001CR 4슬롯 보조 배터리 충전기 빠른 참조 안내서 (ko)

MN002652A04KO 개정판 A
Download 1 MB
STB3678 Cradle Quick Start Guide (ru)

MN-002334-05KO Rev. A
Download 3 MB
BERÇO STB3678 Guia de Referência Rápida (pt-BR)

MN-002334-05PTBR Rev. A
Download 1 MB
FLB3678 Quick Reference Guide (pt-BR)

MN002336A03BP Rev. A
Download 1 MB
LI3608 Guia Rápido do Leitor do Capturador de Imagens Linear (pt-BR)

MN002166A03PTBP Rev. A
Download 2 MB
LI3678 Leitor do Capturador de Imagens Linear Guia Rápido (pt-BR)

MN-002323-04PTBR Rev. A
Download 3 MB
SAC3600-4001CR Cargador de batería de repuesto de cuatro ranuras Guía de referencia rápida (es)

MN002652A03ES Rev. A
Download 1 MB
SAC3600-4001CR Carregador de Bateria Sobressalente com Quatro Compartimentos Guia de Referência Rápida (pt-BR)

MN002652A04PTBR Rev. A
Download 1 MB
FLB3678 Quick Reference Guide (ru)

MN002336A03RU Rev. A
Download 1 MB
LI3608 Линейный имидж-сканер Краткое руководство по эксплуатации (ru)

MN002166A03RU Rev. A
Download 2 MB
LI3678 Линейный имидж-сканер Краткое руководство по эксплуатации (ru)

MN-002323-04RU Rev. A
Download 3 MB
SAC3600-4001CR Зарядное устройство на четыре запасных аккумулятора Краткое справочное руководство (ru)

MN002652A04RU ред. A
Download 1 MB
STB3678 Quick Start Guide (ru)

MN-002334-05RU Rev. A
Download 2 MB
FLB3678 Quick Reference Guide (tr)

MN002336A03TU Rev. A
Download 1 MB
LI3608 Lineer Görüntü Tarayıcı Hızlı Başlangıç Kılavuzu (tr)

MN002166A03TR Rev. A
Download 2 MB
LI3678 Lineer Görüntü Tarayıcı Hızlı Başlangıç Kılavuzu (tr)

MN-002323-04TR Rev. A
Download 3 MB
SAC3600-4001CR Dört Yuvalı Yedek Pil Şarj Cihazı Hızlı Başvuru Kılavuzu (tr)

MN002652A04TR Rev. A
Download 2 MB
STB3678 İSTASYON Hızlı Başvuru Kılavuzu (tr)

MN-002334-05TR Rev. A
Download 1 MB
LI3608 线性成像仪扫描器快速入门指南 (zh-CN)

MN002166A04ZHCN 版本 A
Download 1 MB
LI3678 线性成像仪扫描器快速入门指南 (zh-CN)

MN-002323-05ZHCN 版本 A
Download 3 MB
SAC3600-4001CR 四槽备用电池充电器快速参考指南 (zh-CN)

MN002652A04ZHCN 版本 A
Download 1 MB
STB3678 Quick Start Guide (zh-CN)

MN-002334-06ZHCN Rev. A
Download 3 MB
FLB3678 Quick Reference Guide (zh-TW)

MN002336A03TC Rev. A
Download 2 MB
LI3608 Taiwan RoHS Sheet (zh-TW)

MN-003010-01ZHTW Rev. A
Download 251 KB
LI3608 線性成像器掃描器快速入門指南 (zh-TW)

MN002166A03ZHTW Rev. A
Download 2 MB
LI3678 線性成像器掃描器快速入門指南 (zh-TW)

MN-002323-04ZHTW Rev. A
Download 4 MB
STB3678 通訊座快速參考指南 (zh-TW)

MN-002334-05ZHTW Rev. A
Download 3 MB

+ Utilities

123Scan Utility Support

Zebra scanner configuration utility.
Zebra Evolution Update

Subscribe to this quarterly email. It lists the latest updates to your scanner’s firmware and Zebra software tools.
Scan-To-Connect Utility for Windows

Enables a Zebra Bluetooth scanner to pair with a PC in one simple step.
Scanner Update Utility For Windows 10 (32 and 64bit)

A basic firmware and configuration update tool for use in stores, hospitals, warehousing environments. Use of this tool requires staging by an IT department.
Scanner Control App

This demo app enables Zebra cordless scanners to be connected and controlled by a tablet or a smartphone.
Scanner Management Service for Windows

Allows remote management of Zebra scanners from your PC with a Windows OS.
Scan-To-Connect Utility for Android

Enables a Zebra Bluetooth scanner to pair with a phone, or tablet in one simple step.

+ Developer Tools

Scanner SDK for Windows

Scanner Software Developers Kit (SDK) for Windows includes Sample applications for C++ and C#, OPOS, JPOS, and Windows Management Instrumentation (WMI) drivers and test utilities.
Scanner SDK for Android

Scanner Software Developers Kit (SDK) for Android enables the development of custom scanner control apps for Zebra scanners.
Scanner SDK for Linux

Scanner Software Developers Kit (SDK) for Linux includes the JPOS driver, Development libraries and header files for application developers, and Test and Sample utilities.
EA3600 Industrial Ethernet Software for Windows
Scanner SDK for iOS

Scanner Software Developers Kit (SDK) for iOS enables MFi or Bluetooth Low Energy (BLE) cordless scanners to be connected and controlled by an iPad, iPhone, or iPod Touch without using a cradle.
