Measuring Wafer Position


Handling wafers is a precise task where even the slightest misalignment can cause issues during the lithography process, leading to longer changeovers and lower yields. Vision-guided inspections offer high-resolution imaging and precise measurements. Adding 3D sensing verifies the position, tilt, and orientation of wafers while in motion, helping robots avoid touching fragile surfaces. Automated, in-line controls enhance quality, speed up cycles, and improve yields.

Frame Grabber Photography Application Wafer Inspection 16:9 3600

Confidently measure wafer notch position using 2D imaging and 3D validation for faster lines and improved yield

Iris GTX Photography Application Inspecting Semiconductor Wafer Notch 16:9 3600

Measure wafer notch position with precision

Zebra smart cameras capture high-resolution images of the wafer’s edges and notches. These images are analyzed using Aurora machine vision software. After calibrating the optics once, the software converts the pixel distances into micrometers. It then matches arcs, lines, and circle centers to the wafer’s edge to determine the notch’s angle and offset, checking these against user-defined tolerances. If there’s any misalignment, a correction to adjust the wafer can be made before the next step, ensuring it stays precisely aligned.

Altiz 4200 Photography Application Semiconductor Wafer 16:9 3600

Add 3D validation for in‑motion accuracy

AltiZ 3D profile sensors capture three‑dimensional (3D) point clouds of the wafer edge and notch while conveyors move, verifying the wafer’s position, tilt, and bow without stopping the line.   The system cross-checks 2D measurements with 3D geometry to prevent errors from glare, automatically adjusting robot handling or raising alarms as needed. It effectively manages glossy surfaces and maintains alignment at typical production speeds.

Aurora Imaging Library Screenshot of Wafer with 2D Code Overlay 16:9 3600

Turn Inspection Data into Process Control and Traceability

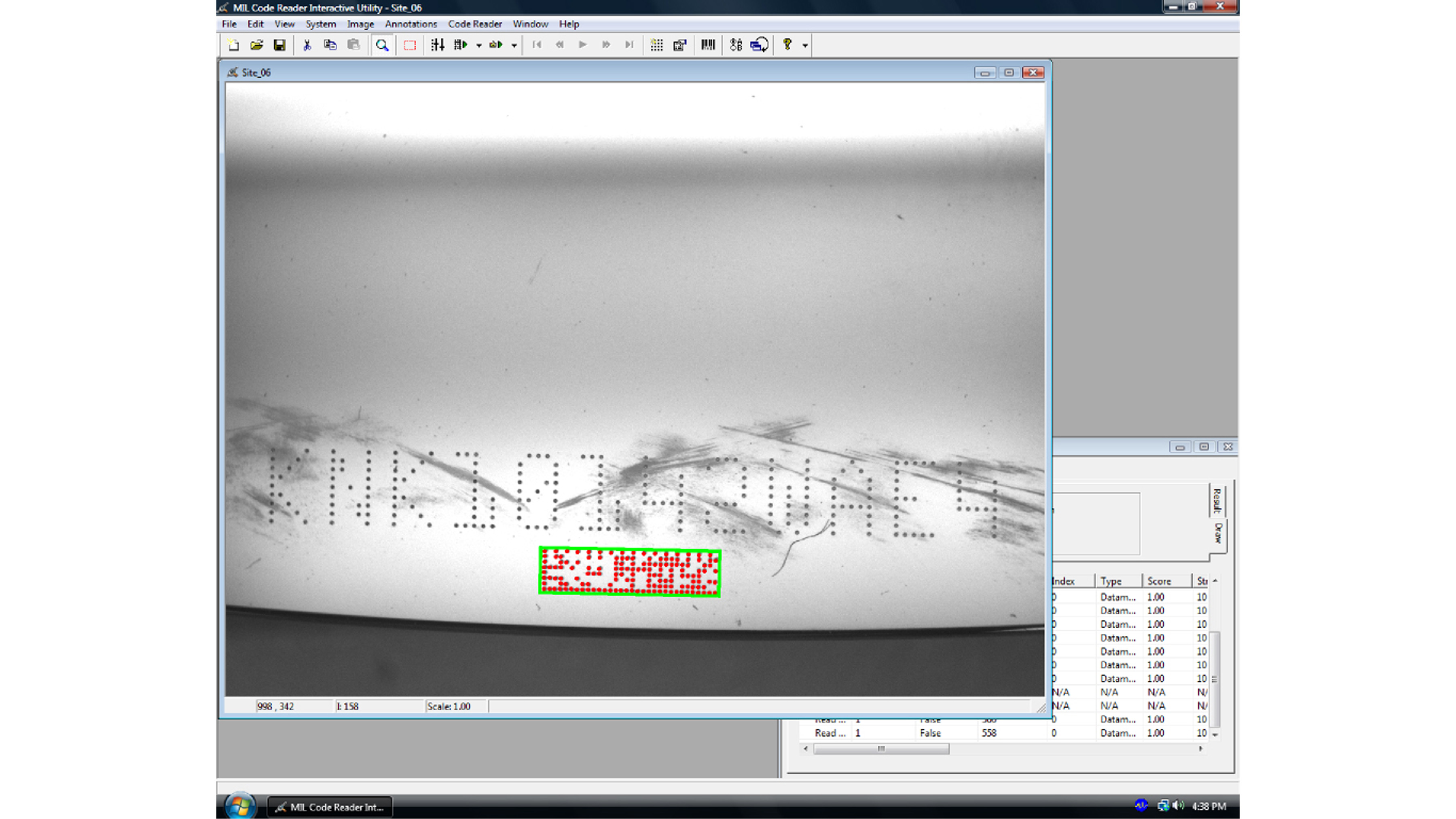

The Zebra Aurora software platform makes it easy to share alignment results directly with a Manufacturing Execution System (MES) and statistical process control (SPC) dashboards. Aurora Imaging Library software captures precise measurements of wafer positions. Each measurement is carefully tagged with information like lot, tool, and recipe IDs, making audits traceable and allowing for strong trend analysis. This all-in-one solution ensures that wafers meet strict quality standards, automatically flags out-of-spec positions, and keeps a detailed record of any adjustments made.
